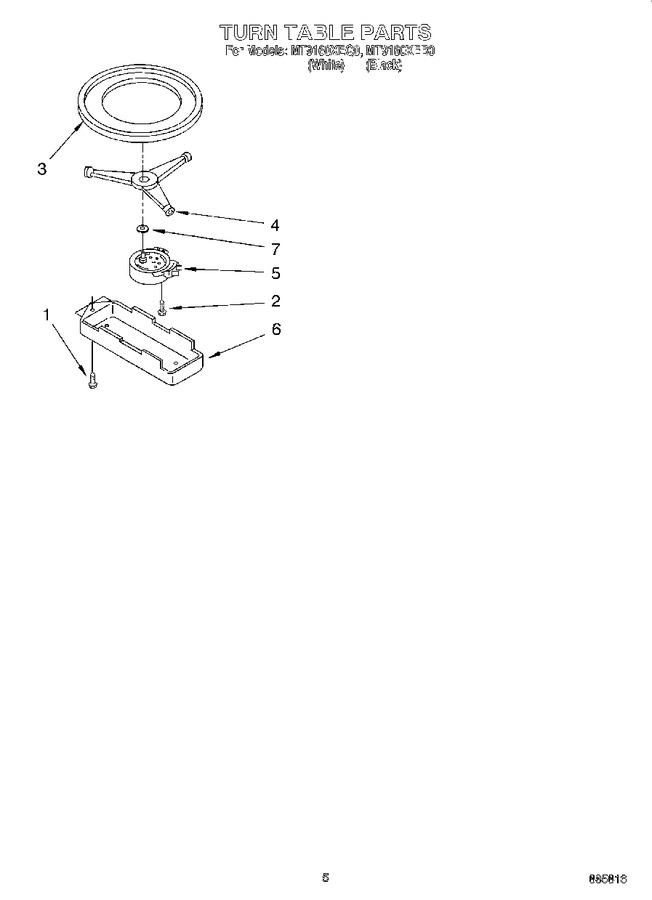

05 - Turn Table, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4313661 | Screw, 4 X 8 Mm |
|
- | |||||
| 2 | 4174757 | Screw, 3 X 8 Mm |
|
- | |||||
| 3 | 4313690 | Tray, Glass |
|
- | |||||
| 4 | 4313156 | Support, Turntable |
|
- | |||||
| 5 | 4313146 | Motor, Turntable |
|
- | |||||
| 6 | 4365573 | Cover, Motor |
|
- | |||||
| 7 | 242829 | Wire (12 Ga. 150 C Red) |
|
- | |||||
| 7 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 7 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 7 | 242826 | Wire (14 Ga. 150 C White) |
|
- | |||||
| 7 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 7 | 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | |||||
| 7 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 7 | 4313125 | Gasket, Turntable |
|
- | |||||
| 7 | WP261869 | Citrine White (1/2 Oz.) (Replaces: 261869) |
|
$ 23.85 | |||||
| 7 | 832889 | Cord Brown (1/2 Oz.) |
|
$ 26.23 | |||||
| 7 | 261900 | Citrine White (6 Oz.) |
|
$ 51.34 | |||||
| 7 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 7 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 7 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 7 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 7 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 7 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 7 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 7 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 4313150 | Harness, L.v. |
|
- | ||||||
| LIT4365612 | Tech Sheet |
|
- | ||||||
| LIT4365611 | Use & Care Guide |
|
- | ||||||
| LIT4365609 | Cooking Guide |
|
- | ||||||
| 4313148 | Harness, Fuse |
|
- | ||||||
| 4313679 | Harness, Hv |
|
- | ||||||
| 4313149 | Harness, Main |
|
- |
