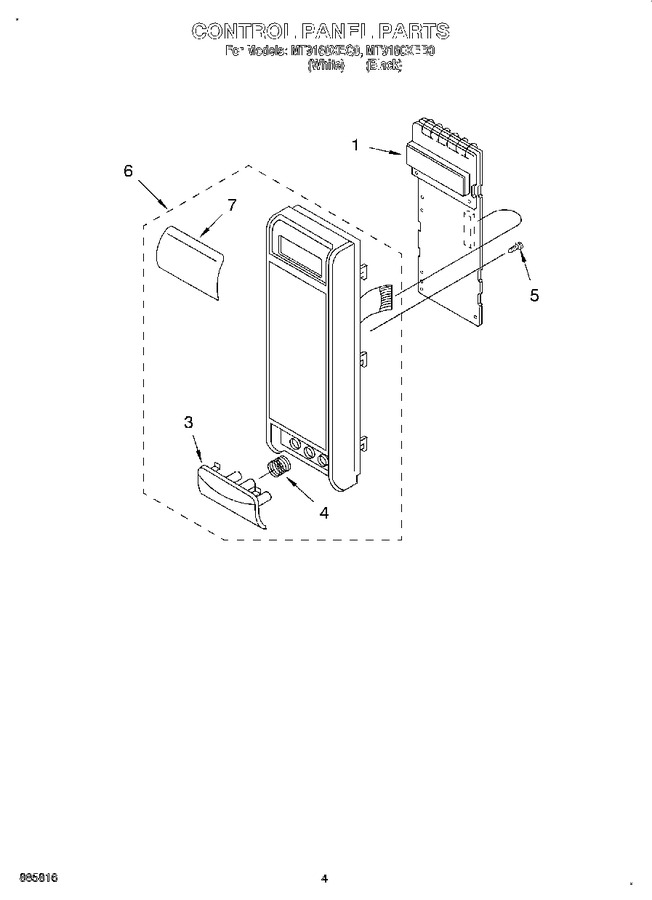

04 - Control Panel
05 - Turn Table, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4313157 | Microcomputer |
|
- | |||||
| 3 | 4313168 | Push Button (white) |
|
- | |||||
| 3 | 4313160 | Push Button (black) |
|
- | |||||
| 4 | 4313631 | Spring, Button |
|
- | |||||
| 5 | 4313632 | Screw |
|
- | |||||
| 6 | 4313158 | Control Panel Assembly (black Model) |
|
- | |||||
| 6 | 4313166 | Control Panel Assembly (white Model) |
|
- | |||||
| 7 | 4313130 | Window |
|
- |
