SELECT A DIAGRAM

02 - Cabinet

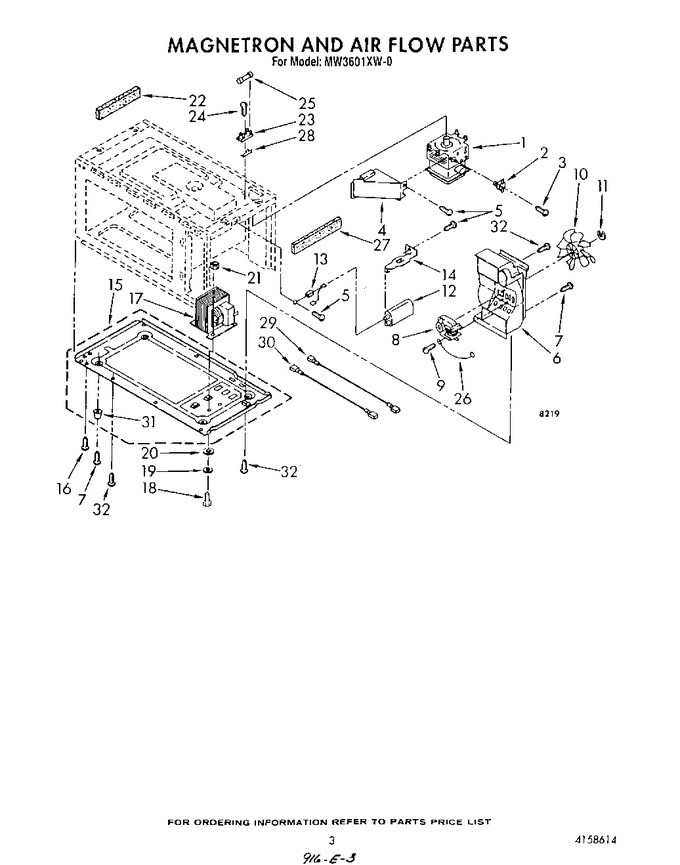

03 - Magnetron And Air Flow


04 - Oven Door And Latch


05 - Panel


06 - Wiring Harness , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158589		Magnetron		Appelez-nous	-
2	4339305		Thermal Protector		Appelez-nous	-
3	4158186		Screw, 3 X 16 Mm (2)		Appelez-nous	-
4	4158146		Duct, Air		Appelez-nous	-
5	4158071		Screw, 4 X 8 Mm		Appelez-nous	-
6	4158147		Cover, Fan		Appelez-nous	-
7	4158190		Screw, 4 X 12 Mm		Appelez-nous	-
8	4158148		Motor, Fan		Appelez-nous	-
9	4158189		Screw, 4 X 28 Mm (3)		Appelez-nous	-
10	4158149		Fan		Appelez-nous	-
11	4158063		E-ring		Appelez-nous	-
12	4158593		Capacitor		Appelez-nous	-
13	4158595		Diode Cable		Appelez-nous	-
14	4158594		Bracket, Capacitor		Appelez-nous	-
15	4158157		Plate, Base (includes Illus. No. 31)		Appelez-nous	-
16	4158194		Screw, 4 X 10 Mm		Appelez-nous	-
17	4158592		Transformer		Appelez-nous	-
18	4158081		Screw, 5 X 16 Mm (2)		Appelez-nous	-
19	4158087		Washer (2)		Appelez-nous	-
20	4158207		Washer (2)		Appelez-nous	-
21	4158053		Nut (2)		Appelez-nous	-
22	4158159		Foam, Duct (2)		Appelez-nous	-
23	4158581		Holder, Fuse		Appelez-nous	-
24	4158079		Screw, 4 X 8 Mm				$ 6.69
25	4158378		Fuse		Appelez-nous	-
26	4158214		Lead, High Voltage		Appelez-nous	-
27	4158167		Foam, Fan Cover		Appelez-nous	-
28	4158126		Plate, Discharge		Appelez-nous	-
29	4158184		Lead, High Voltage		Appelez-nous	-
30	4158185		Lead, High Voltage		Appelez-nous	-
31	4339375		Foot (4)		Appelez-nous	-
32	4158076		Screw, 4 X 10 Mm		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
