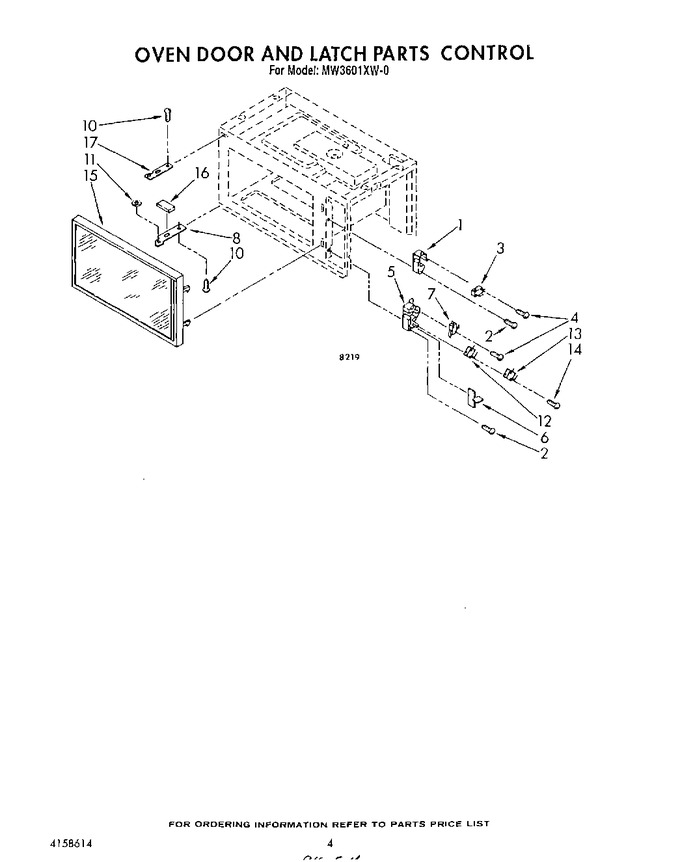

04 - Oven Door And Latch


05 - Panel


06 - Wiring Harness , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158152		Latch, Upper		Appelez-nous	-
2	4158190		Screw, 4 X 12 Mm		Appelez-nous	-
3	4392027		Switch, Primary   (Replaces: 4158600)				$ 138.41
4	4158187		Screw, 3 X 16 Mm (2)		Appelez-nous	-
5	4158154		Latch, Lower		Appelez-nous	-
6	4158155		Rod, Release		Appelez-nous	-
7	4158609		Switch, Monitor		Appelez-nous	-
8	4158160		Hinge Plate, Lower		Appelez-nous	-
10	4158192		Screw, 5 X 12 Mm (2)		Appelez-nous	-
11	4158117		Washer		Appelez-nous	-
12	4392027		Switch, Light   (Replaces: 4158590)				$ 138.41
13	4158197		Switch, Secondary		Appelez-nous	-
14	4158208		Screw, 3 X 30 Mm		Appelez-nous	-
15	4158198		Door, Complete		Appelez-nous	-
16	4158170		Foam		Appelez-nous	-
17	4158139		Hinge Plate, Upper		Appelez-nous	-
