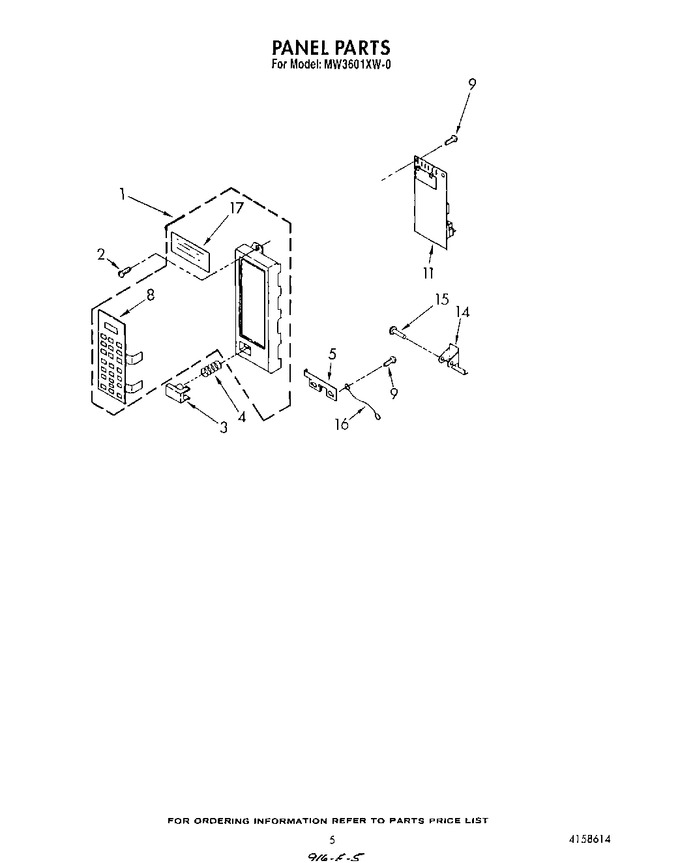

05 - Panel


06 - Wiring Harness , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158669		Control Panel (includes Illustration 8 & 17)		Appelez-nous	-
2	4158188		Screw, 4 X 10mm		Appelez-nous	-
3	4158334		Button, Push To Start		Appelez-nous	-
4	4158178		Spring, Button				$ 5.83
5	4158605		Base Bracket		Appelez-nous	-
6	4158217		Microcomputer		Appelez-nous	-
7	4158186		Screw, 3 X 6 Mm		Appelez-nous	-
9	4158076		Screw		Appelez-nous	-
11	4158612		Microcomputer		Appelez-nous	-
14	4158203		Lever, Release		Appelez-nous	-
15	4158204		Pin, Lever		Appelez-nous	-
16	4158205		Wire Lead		Appelez-nous	-
