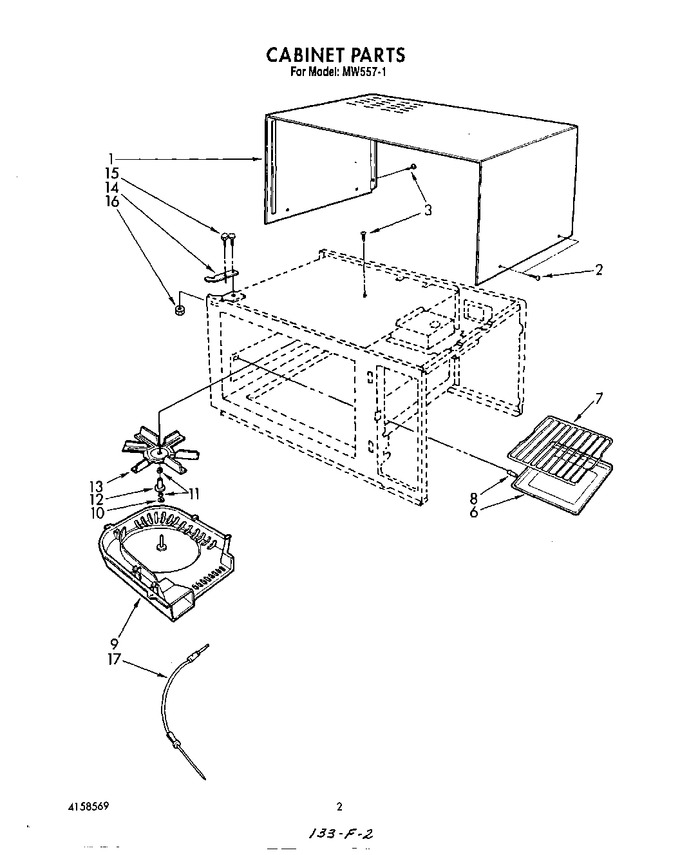

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158453 | Cabinet Wrapper |
|
- | |||||
| 2 | 4158084 | Screw No.4x12mm (4) |
|
- | |||||
| 3 | 4158076 | Screw No.4x10mm (4) |
|
- | |||||
| 6 | 4339271 | Glass Tray |
|
- | |||||
| 7 | 4339283 | Shelf, Metal |
|
- | |||||
| 8 | 4339330 | Support, Rack (4) |
|
- | |||||
| 9 | 4158458 | Stirrer Cover |
|
- | |||||
| 10 | 4158459 | Washer, Sliding |
|
- | |||||
| 11 | 4158460 | Bushing, Shaft (2) |
|
- | |||||
| 12 | 4158461 | Bushing, Stirrer Fan |
|
- | |||||
| 13 | 4158462 | Stirrer Blade |
|
- | |||||
| 14 | 4158463 | Hinge, Upper |
|
- | |||||
| 15 | 4158192 | Screw (2) |
|
- | |||||
| 16 | 4158053 | Nut, M5 (2) |
|
- | |||||
| 17 | 4158569 | Repair Parts List |
|
- | |||||
| 17 | 4158570 | Installation Instructions |
|
- | |||||
| 17 | 4339391 | Cook Book |
|
- | |||||
| 17 | 4158371 | Temperature Probe |
|
- |
