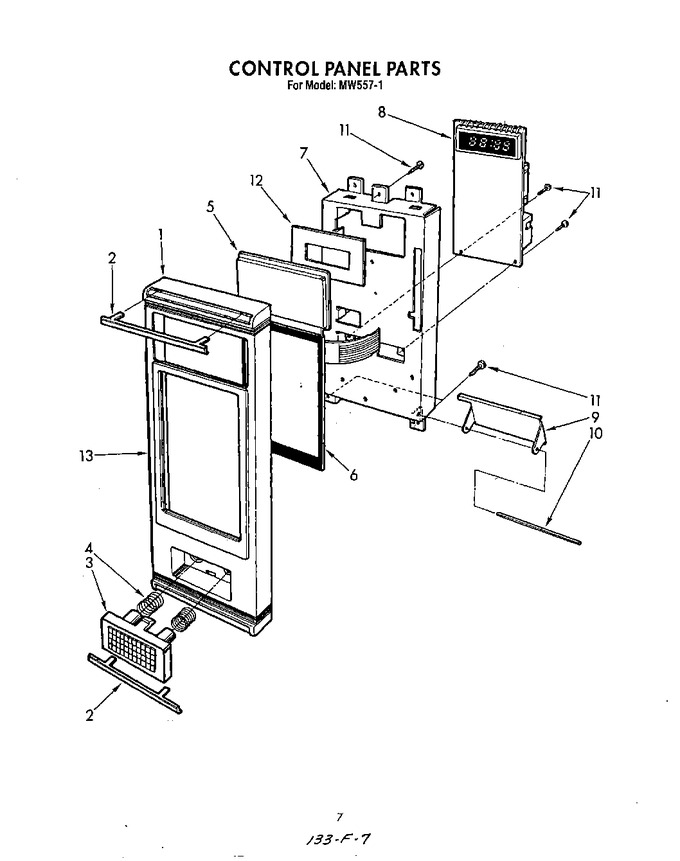

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158441		Control Panel		Appelez-nous	-
2	4158442		Trim (2)		Appelez-nous	-
3	4158443		Button, Release		Appelez-nous	-
4	4339383		Spring, Release (2)		Appelez-nous	-
5	4158445		Window, Digitron		Appelez-nous	-
6	4158446		Panel, Touch		Appelez-nous	-
7	4158447		Bracket		Appelez-nous	-
8	4158448		Microcomputer		Appelez-nous	-
9	4158449		Lever, Release		Appelez-nous	-
10	4158450		Pin, Release Lever		Appelez-nous	-
11	4158076		Screw No.4x10mm (5)		Appelez-nous	-
12	4158451		Shield		Appelez-nous	-
13	4158452		Nameplate		Appelez-nous	-
