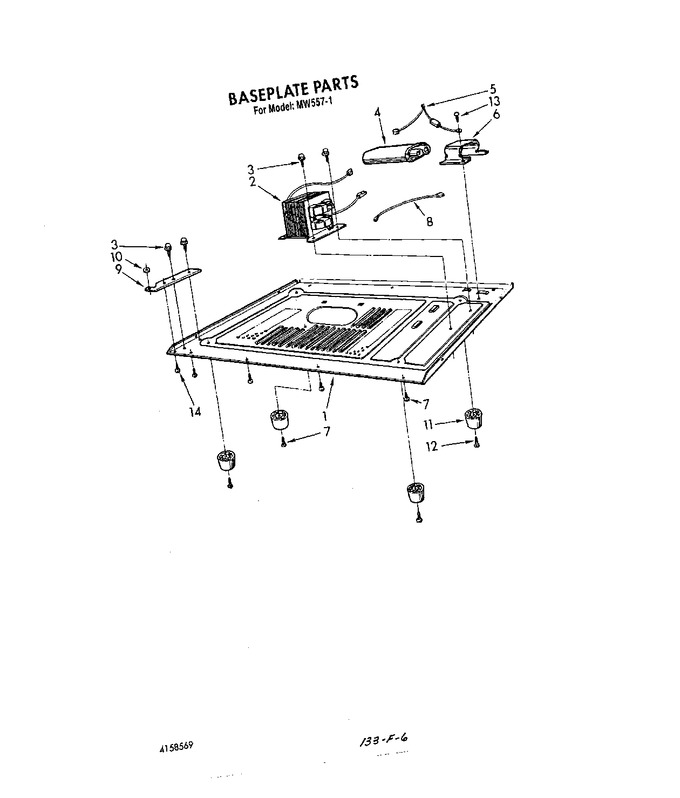

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158464 | Baseplate |
|
- | |||||
| 2 | 4158465 | Transformer |
|
- | |||||
| 3 | 4158192 | Screw No.5x12mm (4) |
|
- | |||||
| 4 | 4158466 | Capacitor |
|
- | |||||
| 5 | 4158467 | Wire Harness |
|
- | |||||
| 6 | 4158043 | Bracket, Capacitor |
|
- | |||||
| 7 | 4158076 | Screw No.4x10mm (8) |
|
- | |||||
| 8 | 4158468 | Wire Harness |
|
- | |||||
| 9 | 4158469 | Hinge Plate, Lower |
|
- | |||||
| 10 | 4339331 | Washer, Hinge |
|
- | |||||
| 11 | 4158471 | Leg (4) |
|
- | |||||
| 12 | 4158472 | Screw No.4x16mm (4) |
|
- | |||||
| 13 | 4158079 | Screw |
|
$ 6.69 | |||||
| 14 | 4158194 | Screw, Machine (1) |
|
- |
