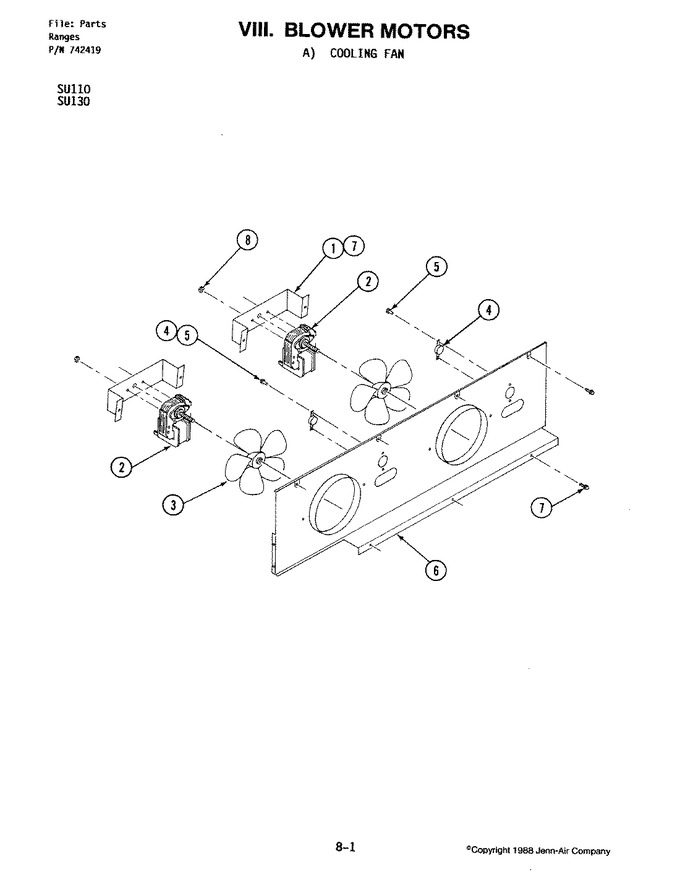

01 - Blower Motor (cooling Fan)
02 - Body
03 - Control Panel
04 - Door
05 - Drawer Assembly
06 - Oven
07 - Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y702542 | Bracket, Mounting Motor | 1 |
|
- | ||||
| 2 | Y702549 | Motor, Fan | 1 |
|
- | ||||
| 3 | Y702525 | Blade, Fan | 1 |
|
- | ||||
| 4 | 704317 | Limit, Thermal | 1 |
|
- | ||||
| 5 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 6 | 704293 | Back, Unit | 1 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 8 | M0282005 | Nut, Hex (Replaces: 701719) | 1 |
|
$ 7.07 |
