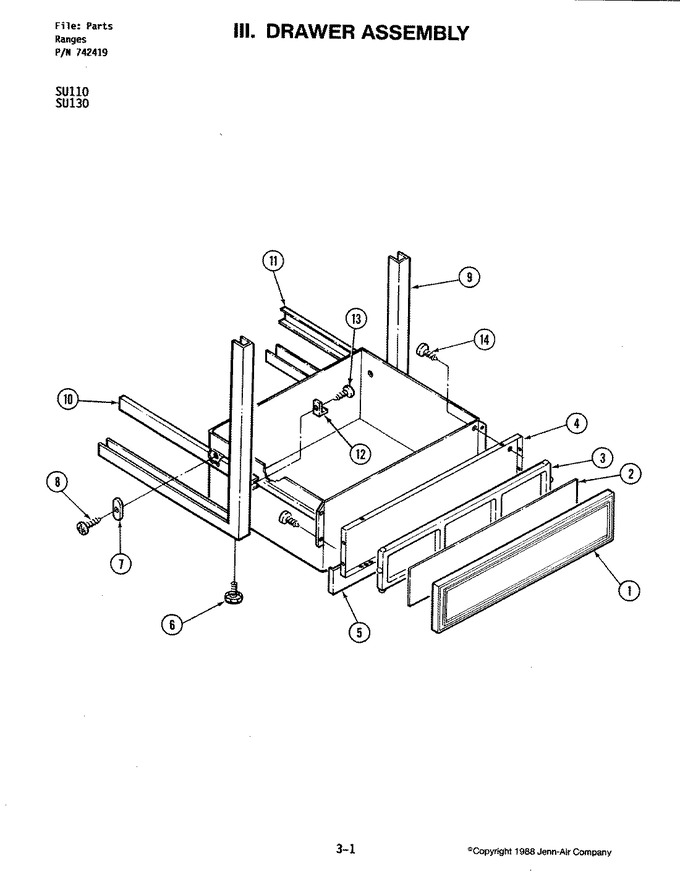

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704299 | Frame | 1 |
|
- | ||||
| 2 | 703435 | Panel, Base | 1 |
|
- | ||||
| 3 | Y702896 | Spacer, Base Door | 1 |
|
- | ||||
| 4 | Y703965 | Liner, Door | 1 |
|
- | ||||
| 5 | 703966 | Panel, Kick | 1 |
|
- | ||||
| 6 | W11117769 | Leveler,adjust (Replaces: Y708696) | 1 |
|
Immediately | $ 16.61 | |||
| 7 | 703963 | Slide, Drawer | 1 |
|
- | ||||
| 8 | 712066 | Screw | 1 |
|
- | ||||
| 9 | 712000 | Rail, Support Assembly | 1 |
|
- | ||||
| 10 | 703967 | Chanel, Drawer (lt) | 1 |
|
- | ||||
| 11 | 703968 | Chanel, Drawer (rt) | 1 |
|
- | ||||
| 12 | Y703962 | Guide, Drawer | 1 |
|
- | ||||
| 13 | WP179051 | Screw (Replaces: 708764) | 1 |
|
Immediately | $ 7.16 | |||
| 14 | W11233072 | Screw (blk) (Replaces: Y704237) | 1 |
|
Immediately | $ 12.62 | |||
| 15 | 712608 | Drawer | 1 |
|
- |
