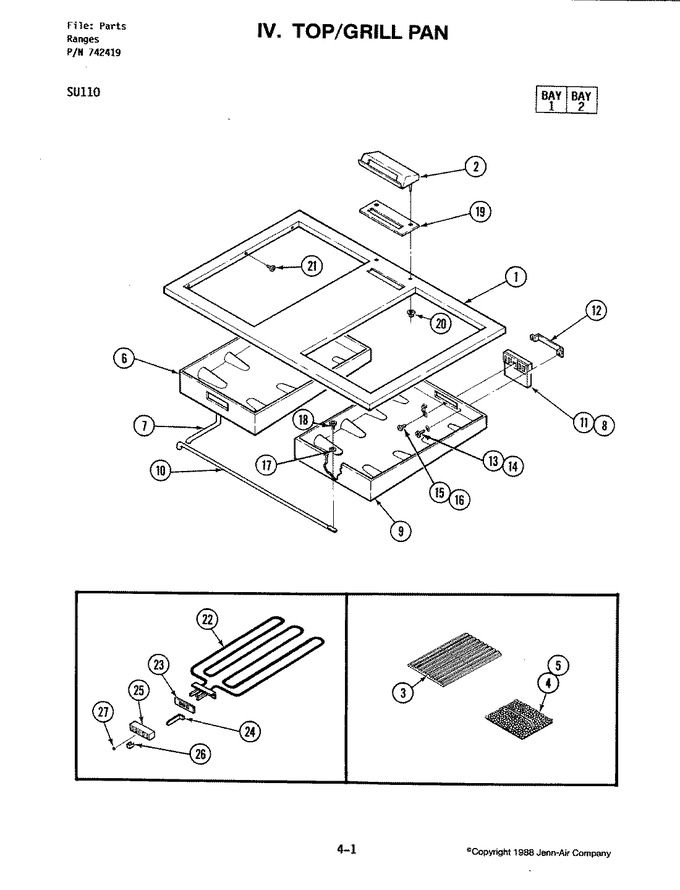

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704291		Top, Range	1	Appelez-nous	-
2	704320		Trim, Vent	1	Appelez-nous	-
3	703905		Grate, Grill	1	Appelez-nous	-
4	708929		Plate, Rock	1	Appelez-nous	-
5	700819		Support, Rock Plate	1			$ 71.81
6	Y712203		Wire, Violet	1	Appelez-nous	-
6	712354		Wire, Blue	1	Appelez-nous	-
6	Y712197		Wire, Brown	1	Appelez-nous	-
6	Y712200		Wire, Yellow	1	Appelez-nous	-
6	712356		Wire Kit	1	Appelez-nous	-
6	701955		Pan, Grill (lt)	1	Appelez-nous	-
7	Y702463		Tube, Drain (left)	1	Appelez-nous	-
8	704168		Receptacle, Ceramic	1	Appelez-nous	-
9	WP5708M008-60		Wire, Violet   (Replaces: Y712202)	1			$ 87.19
9	WP5708M007-60		Wire, Yellow   (Replaces: Y712201)	1			$ 117.23
9	Y701956		Pan, Grill (rt)	1	Appelez-nous	-
9	712354		Wire, Blue	1	Appelez-nous	-
9	Y712199		Wire, Brown	1	Appelez-nous	-
9	Y712357		Wire Kit	1	Appelez-nous	-
10	Y702327		Tube, Drain (right)	1	Appelez-nous	-
11	WPY702434		Receptacle   (Replaces: 702783)	1		Immediately	$ 96.61
12	Y702698		Bracket	1	Appelez-nous	-
13	WP59002061		Screw   (Replaces: Y707172)	1			$ 6.98
14	Y707664		Washer	1	Appelez-nous	-
15	WP489128		Screw   (Replaces: Y707341)	1			$ 9.79
16	74004835		Clip   (Replaces: Y702699)	1			$ 11.37
17	702747		Washer, Teflon	1	Appelez-nous	-
18	702748		Nut, Drain Tube	1	Appelez-nous	-
19	704443		Gasket, Vent Trim	1	Appelez-nous	-
20	7103P166-60		Palnut   (Replaces: 715500)	1			$ 15.91
21	W11233072		Screw   (Replaces: Y707347)	1		Immediately	$ 12.62
22	703943		Element, Complete, 240v	1	Appelez-nous	-
23	Y700449		Insulator	1	Appelez-nous	-
24	Y704166		Spade, Contact (wht)	1	Appelez-nous	-
25	WPY708730		Block, Terminal   (Replaces: Y708730)	1		Immediately	$ 87.44
26	Y700450		Clip, Shunt	1			$ 9.51
27	Y708862		Nut, Speed	1			$ 13.08
