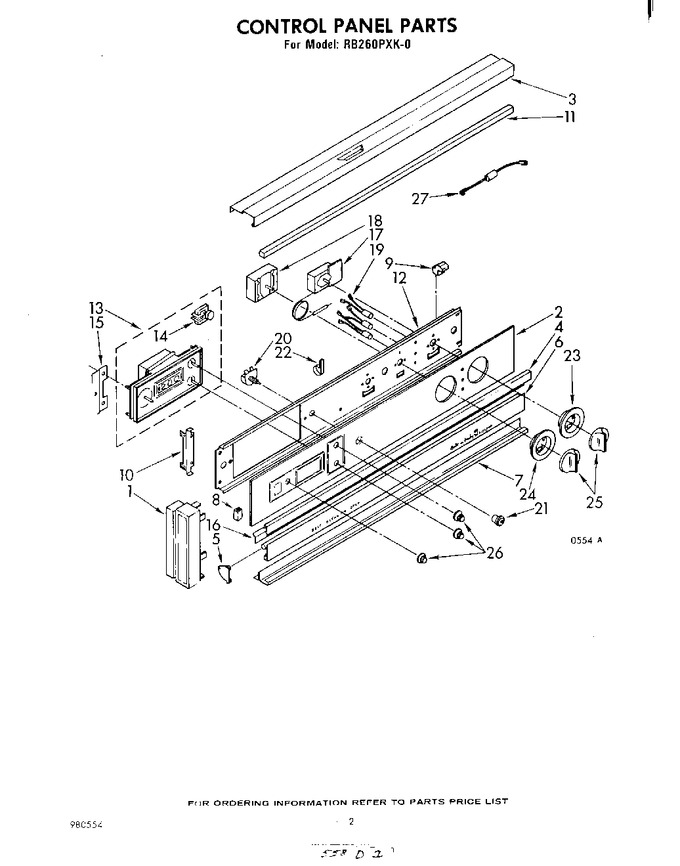

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310829		End Cap (r.h.)		Appelez-nous	-
1	342043		Screw (2)		Appelez-nous	-
1	310828		End Cap (l.h.)		Appelez-nous	-
2	310822		Control Panel, Glass		Appelez-nous	-
3	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
3	310824		Rail, Top		Appelez-nous	-
4	311188		Trim, Center		Appelez-nous	-
5	310832		End Trim, Vent (left Side)		Appelez-nous	-
5	310833		End Trim, Vent (right Side)		Appelez-nous	-
6	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
6	311192		Door, Vent		Appelez-nous	-
7	342043		Screw (4)		Appelez-nous	-
7	311190		Trim, Bottom		Appelez-nous	-
8	310842		Channel, Rubber (2)		Appelez-nous	-
9	310823		Retainer, Glass (4)		Appelez-nous	-
10	310720		Bracket, Control Panel (2)		Appelez-nous	-
10	98520		Screw		Appelez-nous	-
11	311263		Seal, Backguard		Appelez-nous	-
12	310727		Bracket, Control		Appelez-nous	-
13	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
13	308846		Palnut, Timer 10-32		Appelez-nous	-
13	310325		Timer, Digital (included No.14)		Appelez-nous	-
14	308594		Motor, Timer		Appelez-nous	-
15	310721		Bracket, Timer (2)		Appelez-nous	-
16	255893		Seal		Appelez-nous	-
17	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
17	310017		Thermostat, Oven		Appelez-nous	-
18	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
18	310006		Selector Switch		Appelez-nous	-
19	311802		Light Indicator Oven, Lock & Clean (3)		Appelez-nous	-
20	WP965173		Screw, 8a X 3/8 (4)   (Replaces: 246132)			Immediately	$ 9.65
20	308829		Switch, Oven Light		Appelez-nous	-
20	255912		Nut, Hex 3/8		Appelez-nous	-
21	308784		Bezel, Switch		Appelez-nous	-
22	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
22	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
23	311066		Escutcheon, Thermostat				$ 25.00
24	WP311068		Escutcheon, Selector Switch   (Replaces: 311068)				$ 49.73
24	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
25	WP3150371		Knob, Control (2)   (Replaces: 310834)				$ 19.40
26	309553		Knob, Timer (3)		Appelez-nous	-
27	328891		Resistor & Terminal Assembly		Appelez-nous	-
27	98655		Terminal		Appelez-nous	-
