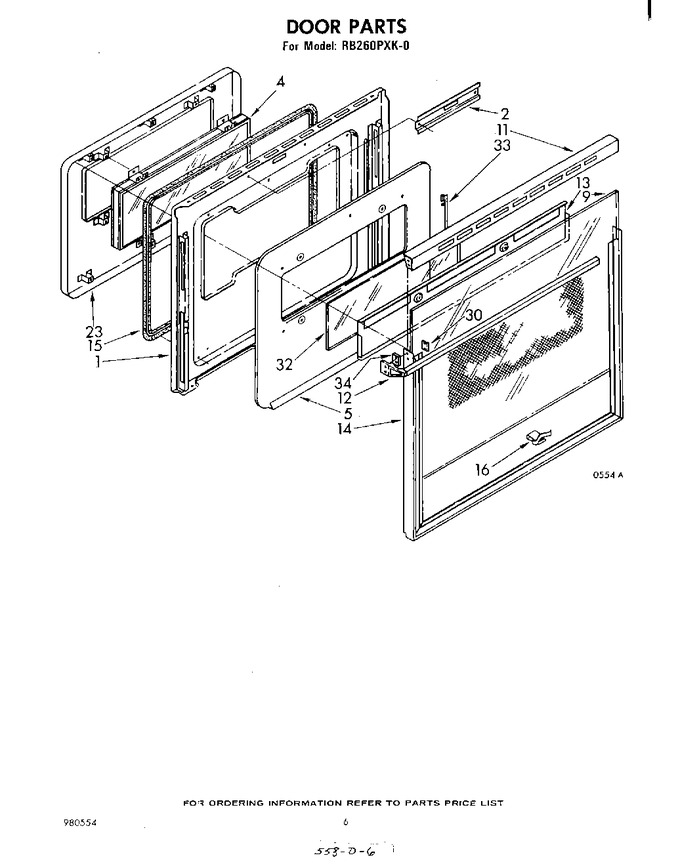

01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 338177 | ``j`` Clip (2) |
|
- | |||||
| 1 | 327869 | Liner, Door |
|
- | |||||
| 1 | WP308685 | Screw, 10a X 1/2 (6) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 1 | 254217 | Screw, 10a 3/8 (3) |
|
- | |||||
| 2 | 311054 | Screw (2) |
|
- | |||||
| 2 | 308033 | Channel, Latch |
|
- | |||||
| 4 | WP308685 | Screw, 10a X 1/2 (4) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 4 | 309844 | Window Package |
|
- | |||||
| 5 | WP308685 | Screw, 10a X 1/2 (8) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 5 | 308021 | Retainer, Insulation |
|
- | |||||
| 9 | 309069 | Glass, Outer |
|
- | |||||
| 11 | 310428 | Top, Door Frame |
|
- | |||||
| 12 | WP912618 | Screw, 8 X 7/8 (4) (Replaces: 308541) |
|
$ 6.98 | |||||
| 12 | 311573 | Handle, Oven Door |
|
- | |||||
| 13 | WP90296 | Pushnut (2) (Replaces: 308593) |
|
$ 7.07 | |||||
| 13 | 309056 | Baffle, Heat |
|
- | |||||
| 14 | 307748 | Screw, 10a X 1/2 (2) (black) |
|
- | |||||
| 14 | 310427 | Frame, Door |
|
- | |||||
| 15 | 311904 | Seal, Fiberglass |
|
- | |||||
| 16 | 310706 | Clip, Glass (10) |
|
- | |||||
| 23 | 327898 | Panel, Inner |
|
- | |||||
| 30 | 311506 | Clip (2) |
|
- | |||||
| 32 | 309842 | Glass (6.81`` X 18.31``) |
|
- | |||||
| 33 | 309843 | Retainer, Glass (2) |
|
- | |||||
| 34 | 980554 | List, Parts |
|
- | |||||
| 34 | 261881 | Rotisserie Kit |
|
- | |||||
| 34 | 311948 | Tech Sheet |
|
- | |||||
| 34 | 311434 | Installation Instructions |
|
- | |||||
| 34 | 311415 | Guide, Use & Care |
|
- | |||||
| 34 | 308500 | Book, Cooking Guide |
|
- | |||||
| 34 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 34 | 310707 | Spacer, Door Handle (2) |
|
- | |||||
| 34 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 34 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 34 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 34 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 34 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 34 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 34 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 34 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 34 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 34 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 34 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 34 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 34 | 242757 | Touch-up Self-clean (1 Oz.) Self-clean (1/2 Pt.) |
|
- | |||||
| 34 | 261582 | Grease |
|
- | |||||
| 34 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 34 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 34 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 |
