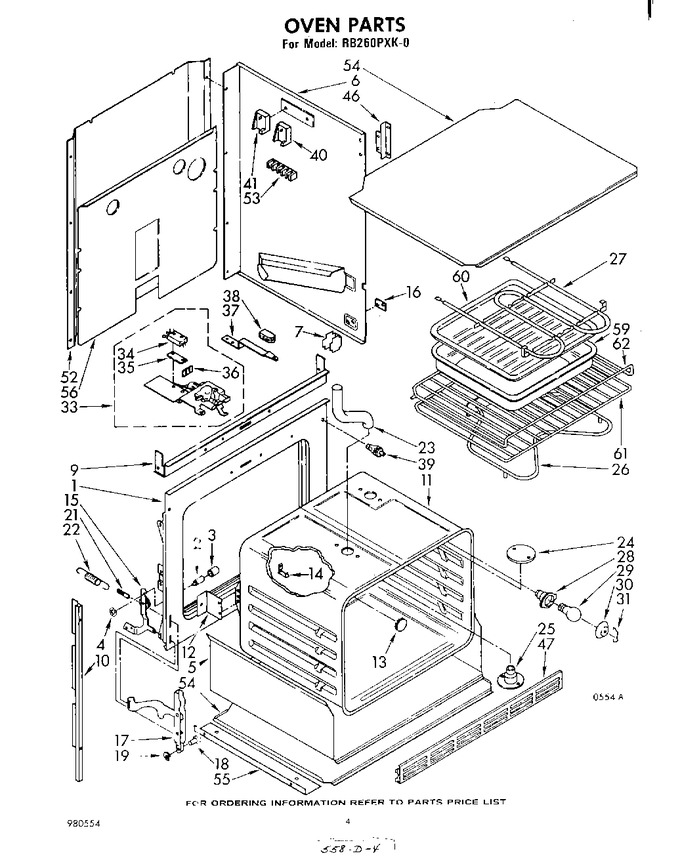

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328747		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	310770		Insulation Tray		Appelez-nous	-
6	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
6	311008		Side Wrapper (l.h.)		Appelez-nous	-
6	WP681414		Screw, 10-32 Hex (ground)   (Replaces: 343631)			Immediately	$ 7.07
6	311005		Side Wrapper (r.h.)		Appelez-nous	-
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
7	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
9	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
9	310693		Baffle, Top Insulation		Appelez-nous	-
10	310689		Side Trim (r.h.)		Appelez-nous	-
10	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
10	310685		Side Trim L.h.		Appelez-nous	-
11	328756		Oven (30`` Pyro)		Appelez-nous	-
11	311056		Screw (3)		Appelez-nous	-
12	246127		Screw, 10-32 X 5/8 (6)		Appelez-nous	-
12	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
13	257314		Plug Button		Appelez-nous	-
14	98005642		Clip, Therm Bulb (2)   (Replaces: 258139)			Immediately	$ 74.64
15	328801		Hinge Ear, R.h.		Appelez-nous	-
15	328802		Hinge Ear, L.h.		Appelez-nous	-
16	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
16	310659		Plate, Side Panel (2)		Appelez-nous	-
17	328803		Channel Arm (2)		Appelez-nous	-
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
19	307594		Ring, Retainer (2)		Appelez-nous	-
21	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
22	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
23	310836		Tube, Vent Extension		Appelez-nous	-
24	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
24	310839		Eliminator, Smoke		Appelez-nous	-
24	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
25	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
25	310662		Plate, Cover		Appelez-nous	-
26	WP308180		Unit, Bake   (Replaces: 308180)				$ 96.92
26	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
27	WP660579		Unit, Broil (alternate)   (Replaces: 311716)				$ 140.80
27	WP660579		Unit, Broil (alternate)   (Replaces: 311715)				$ 140.80
27	246127		Unit, Broil (screw, 10-32 X 5/8 (4))		Appelez-nous	-
28	307856		Socket, Oven Light (alternate)		Appelez-nous	-
28	308043		Socket, Oven Light (screw, 10-12 X 7/8 (2))		Appelez-nous	-
28	310208		Socket, Oven Light (alternate)			Immediately	$ 36.34
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	308039		Cover, Light		Appelez-nous	-
31	308038		Retainer, Light		Appelez-nous	-
33	311056		Screw (2)		Appelez-nous	-
33	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
33	328585		Latch Assembly		Appelez-nous	-
34	308185		Safety Switch		Appelez-nous	-
34	98106		Screw (2)		Appelez-nous	-
35	309245		Insulator, Switch		Appelez-nous	-
36	310100		Terminal, Shield		Appelez-nous	-
37	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
37	310825		Latch, Handle		Appelez-nous	-
38	311253		Knob, Latch Handle		Appelez-nous	-
38	246135		Screw, 8 X 5/16		Appelez-nous	-
39	310345		Switch, Door				$ 94.86
40	310643		Switch, Percentage Broil		Appelez-nous	-
41	311585		Switch, Percentage Bake		Appelez-nous	-
46	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
46	310719		Bracket, Control Panel Mounting (2)		Appelez-nous	-
47	310668		Bottom Grill				$ 556.11
47	309029		Screw, 8-15 X 1/2 (3)		Appelez-nous	-
52	310459		Back Panel		Appelez-nous	-
52	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
53	W10841059		Screw, 10-16 X 3/4 (2)   (Replaces: 98445)		Appelez-nous	-
53	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
53	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
54	310458		Cover, Bottom & Top (2)		Appelez-nous	-
55	311592		Angle, Support (2)		Appelez-nous	-
55	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
56	311011		Cover, Rear		Appelez-nous	-
56	WP308685		Screw, 10a X 1/2 (12)   (Replaces: 253549)			Immediately	$ 7.08
59	310973		Pan, Broiler		Appelez-nous	-
60	308674		Grid, Broiler Pan		Appelez-nous	-
61	308173		Rack, Oven		Appelez-nous	-
62	308172		Rack, Oven (offset)		Appelez-nous	-
