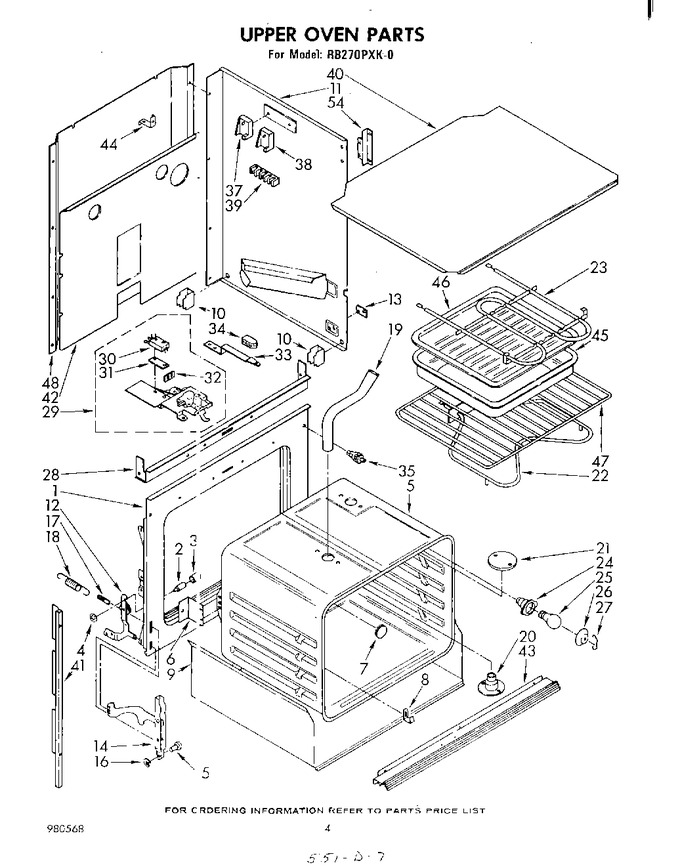

03 - Upper Oven


04 - Lower Oven


05 - Upper Oven Door


06 - Lower Oven Door, Literature And Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328747		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	311056		Screw (3)		Appelez-nous	-
5	328756		Oven (30`` Pyro)		Appelez-nous	-
6	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
6	246127		Screw, 10a X 1/2 (6)		Appelez-nous	-
7	257314		Plug Button		Appelez-nous	-
8	98005642		Clip, Therm Bulb (2)   (Replaces: 258139)			Immediately	$ 74.64
9	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
9	310770		Insulation Tray		Appelez-nous	-
10	311774		Support, Side Wrapper (4)		Appelez-nous	-
10	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
11	WP308685		Side Wrapper (screw, 10a X 1/2 (4))   (Replaces: 253549)			Immediately	$ 7.08
11	311008		Side Wrapper (l.h.)		Appelez-nous	-
11	311005		Side Wrapper (r.h.)		Appelez-nous	-
12	328802		Hinge Ear, L.h.		Appelez-nous	-
12	328801		Hinge Ear, R.h.		Appelez-nous	-
13	WP308544		Screw, 10-24 X 1/2 (4)   (Replaces: 308544)			Immediately	$ 6.98
13	310659		Plate, Side Panel (2)		Appelez-nous	-
14	328803		Channel Arm (2)		Appelez-nous	-
15	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
16	307594		Retainer Ring (2)		Appelez-nous	-
17	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
18	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
19	310836		Vent, Extension (2)		Appelez-nous	-
20	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
20	310839		Eliminator, Smoke		Appelez-nous	-
21	310662		Plate, Cover		Appelez-nous	-
21	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
22	WP308180		Unit, Bake (alternate)   (Replaces: 311652)				$ 96.92
22	246127		Unit, Bake (screw, 10-32 X 5/8 (2))		Appelez-nous	-
22	WP308180		Unit, Bake (alternate)   (Replaces: 311470)				$ 96.92
23	WP660579		Unit, Broil (alternate)   (Replaces: 311716)				$ 140.80
23	246127		Unit, Broil (screw, 10-32 X 5/8 (4))		Appelez-nous	-
23	WP660579		Unit, Broil (alternate)   (Replaces: 311715)				$ 140.80
24	307856		Socket, Oven Light (alternate)		Appelez-nous	-
24	310208		Socket, Oven Light (alternate)			Immediately	$ 36.34
24	308043		Socket, Oven Light (screw, 10-12 X 7/8 (2))		Appelez-nous	-
25	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
26	308039		Cover, Light		Appelez-nous	-
27	308038		Retainer, Light		Appelez-nous	-
28	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
28	310693		Baffle, Top Insulation		Appelez-nous	-
29	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
29	328585		Latch Assembly		Appelez-nous	-
30	98106		Screw (2)		Appelez-nous	-
30	308185		Safety Switch		Appelez-nous	-
31	309245		Insulator, Switch		Appelez-nous	-
32	310100		Terminal, Shield		Appelez-nous	-
33	310825		Latch, Handle		Appelez-nous	-
33	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
34	246135		Screw, 80 X 5/16		Appelez-nous	-
34	311253		Knob, Latch Handle		Appelez-nous	-
35	310345		Switch, Door				$ 94.86
37	310643		Switch, Percentage Broil		Appelez-nous	-
38	311585		Switch, Bake		Appelez-nous	-
39	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-
39	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
39	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
40	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
40	310458		Cover, Top		Appelez-nous	-
41	310690		Side Trim (right Side)		Appelez-nous	-
41	310686		Side Trim (left Side)		Appelez-nous	-
42	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
42	310459		Panel, Back (2)		Appelez-nous	-
43	329019		Hood, Lower Vent		Appelez-nous	-
43	307748		Screw, 10a X 1/2 Black (3)		Appelez-nous	-
44	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.08
44	311582		Stand Off		Appelez-nous	-
45	310973		Pan, Broiler		Appelez-nous	-
46	308674		Grid, Broiler		Appelez-nous	-
47	308173		Rack, Oven (straight)		Appelez-nous	-
47	308172		Rack, Oven (offset)		Appelez-nous	-
48	311011		Cover, Rear		Appelez-nous	-
48	WP308685		Screw, 10a X 1/2 (9)   (Replaces: 253549)			Immediately	$ 7.08
54	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
54	310719		Bracket, Control Panel Mounting (2)		Appelez-nous	-
54	WP488627		Screw (4)   (Replaces: 342055)				$ 6.81
