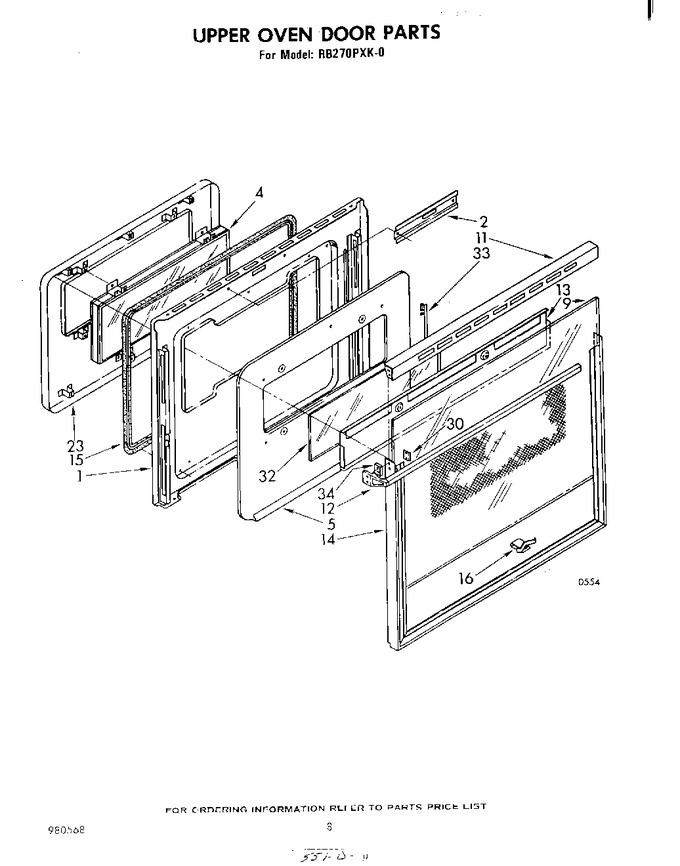

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw, 10a X 1/2 (6)   (Replaces: 253549)			Immediately	$ 7.08
1	311056		Screw (2)		Appelez-nous	-
1	338177		``j`` Clip (2)		Appelez-nous	-
1	327869		Liner, Door		Appelez-nous	-
2	311054		Screw (2)		Appelez-nous	-
2	308033		Channel, Latch		Appelez-nous	-
4	309844		Window Package		Appelez-nous	-
4	WP308685		Screw, 10a X 1/2 (4)   (Replaces: 253549)			Immediately	$ 7.08
5	WP308685		Screw, 10a X 1/2 (8)   (Replaces: 253549)			Immediately	$ 7.08
5	308021		Retainer, Insulation		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
11	310428		Top, Door Frame		Appelez-nous	-
12	311573		Handle, Oven Door		Appelez-nous	-
12	WP912618		Screw, 8 X 7/8 (4)   (Replaces: 308541)				$ 6.98
13	WP90296		Pushnut (2)   (Replaces: 308593)				$ 7.07
13	309056		Baffle, Heat		Appelez-nous	-
14	307748		Screw, 10a X 1/2 (2) (black)		Appelez-nous	-
14	310427		Frame, Door		Appelez-nous	-
15	311904		Seal, Fiberglass		Appelez-nous	-
16	310706		Clip, Glass (8)		Appelez-nous	-
23	327898		Panel, Inner		Appelez-nous	-
30	311506		Clip (2)		Appelez-nous	-
32	309842		Glass (6.81`` X 18.31``)		Appelez-nous	-
33	309843		Retainer, Glass (2)		Appelez-nous	-
34	310707		Spacer, Door Handle (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
