SELECT A DIAGRAM

02 - Control Panel


03 - Upper Oven


04 - Lower Oven


05 - Upper Oven Door


06 - Lower Oven Door, Literature And Optional

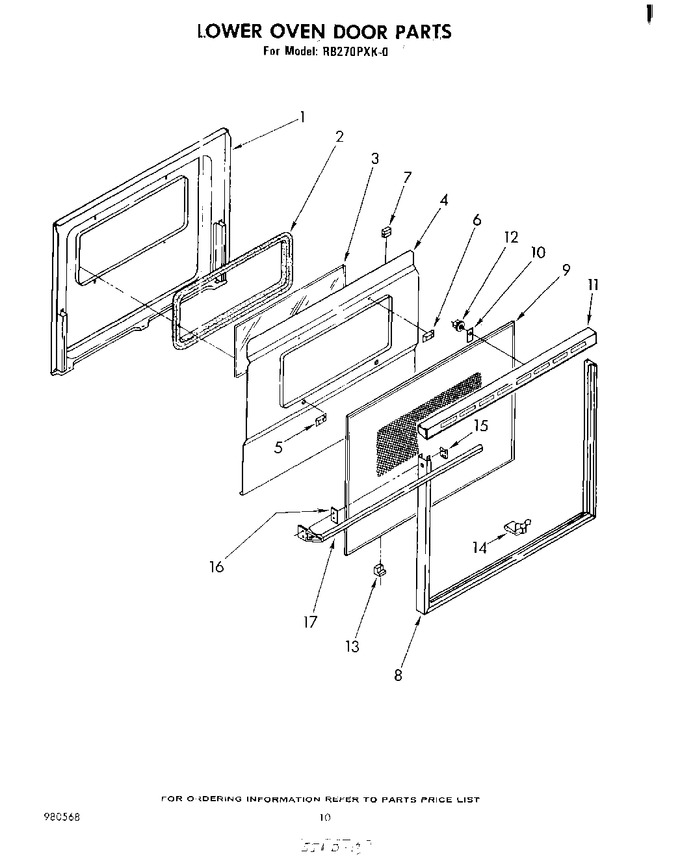

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327858		Liner, Door		Appelez-nous	-
1	WP308685		Screw, 10a X 1\2 (3)   (Replaces: 253549)			Immediately	$ 7.08
1	338177		``j`` Clip (2)		Appelez-nous	-
1	311056		Screw, (4)		Appelez-nous	-
2	258711		Seal, Pano Glass		Appelez-nous	-
3	258988		Glass, Inner 30``		Appelez-nous	-
4	307924		Baffle, Insulation		Appelez-nous	-
5	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
5	258990		Spacer, Insulation Baffle (2)		Appelez-nous	-
6	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
6	258990		Spacer, Insulation Baffle (2)		Appelez-nous	-
7	255859		Channel, Rubber (4)		Appelez-nous	-
8	310427		Frame, Door 30``		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
10	310705		Hold Down, Glass (2)		Appelez-nous	-
11	310428		Top, Door Frame		Appelez-nous	-
11	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
12	WP90296		Fastener, Pushnut (2)   (Replaces: 308593)				$ 7.07
13	309152		Cushion, Oven Door (3)		Appelez-nous	-
14	310706		Clip, Glass (10)		Appelez-nous	-
15	311506		Clip (2)		Appelez-nous	-
16	310707		Spacer, Door Handle (2)		Appelez-nous	-
17	980568		List, Parts		Appelez-nous	-
17	261582		Grease		Appelez-nous	-
17	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
17	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
17	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
17	261881		Rotisserie (top Oven Only)		Appelez-nous	-
17	311949		Tech Sheet		Appelez-nous	-
17	311509		Installation Instructions		Appelez-nous	-
17	311416		Guide, Use & Care		Appelez-nous	-
17	308500		Book, Cooking Guide		Appelez-nous	-
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	311573		Handle, Oven Door		Appelez-nous	-
17	WP912618		Screw, Handle (2)   (Replaces: 308541)				$ 6.98
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
17	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
17	242757		Touch-up Self-clean (1 Oz.) Oven (1 Oz.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
