SELECT A DIAGRAM

01 - Lower Oven


02 - Upper Oven

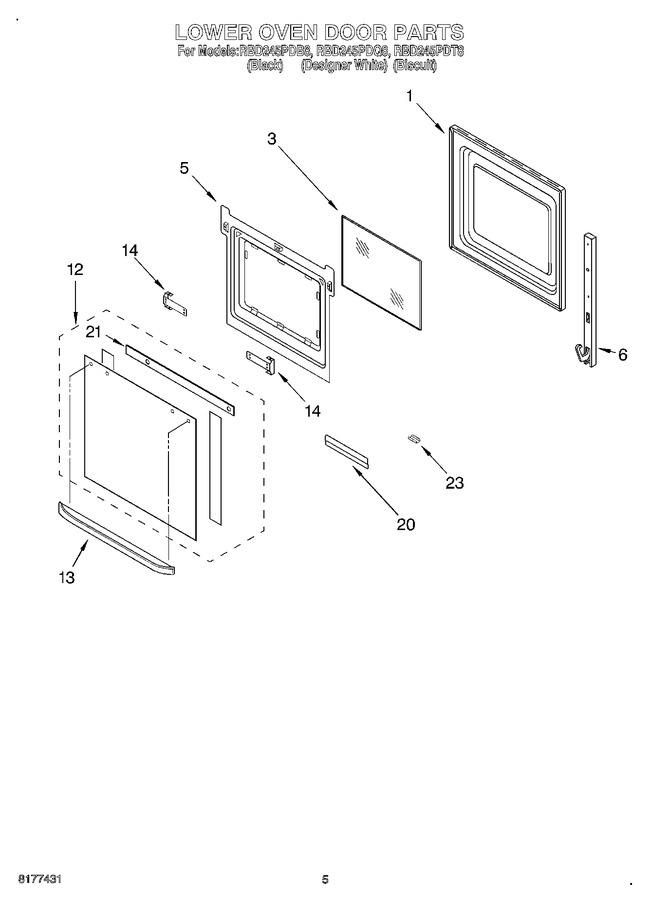

03 - Lower Oven Door


04 - Upper Oven Door


05 - Internal Oven


06 - Control Panel, Literature


07 - Top Venting


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Liner, Door   (Replaces: 4451717)				$ 301.61
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 157.97
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4451669		Retainer, Glass		Appelez-nous	-
6	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
6	4454945		Hinge, Door		Appelez-nous	-
12	4452059		Door Glass Assy (black Model)		Appelez-nous	-
12	8300527		Door Glass Assy (biscuit Model)		Appelez-nous	-
12	4452060		Door Glass Assy (white Model)		Appelez-nous	-
13	4448402		Door Handle (black Model)		Appelez-nous	-
13	4448403		Door Handle (white Model)		Appelez-nous	-
13	8300512		Door Handle (biscuit Model)		Appelez-nous	-
14	4450813		Bracket, Handle				$ 24.20
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
20	4451669		Retainer, Glass		Appelez-nous	-
21	4451672		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
