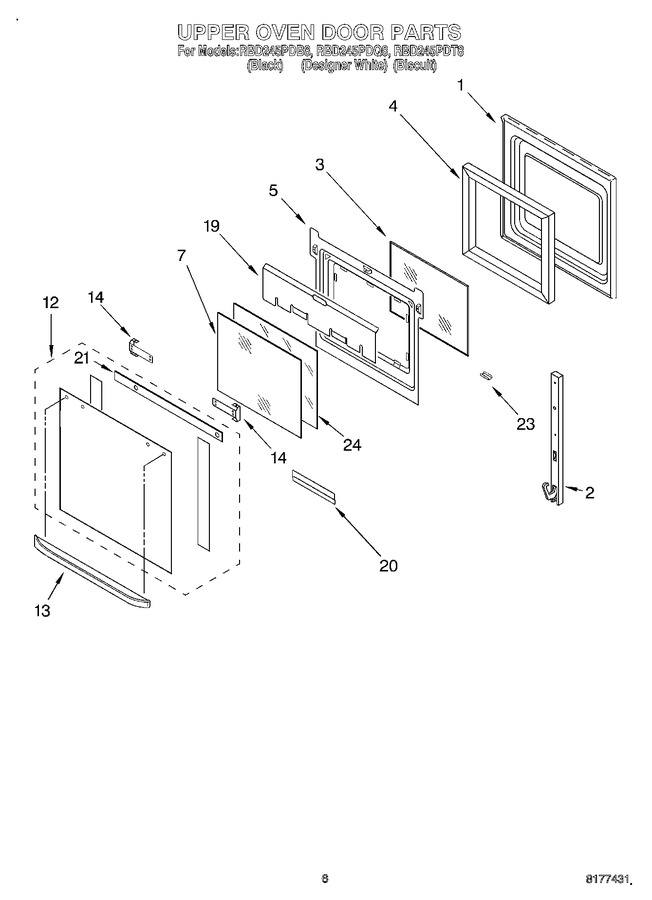

04 - Upper Oven Door


05 - Internal Oven


06 - Control Panel, Literature


07 - Top Venting


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Liner, Door   (Replaces: 4451717)				$ 301.61
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
2	WP4455524		Hinge, Door   (Replaces: 4454947)			Immediately	$ 61.08
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 157.97
4	W11688413		Insulation, Door   (Replaces: 4451720)				$ 23.08
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4451669		Retainer, Glass		Appelez-nous	-
7	4449251		Glass, Inner		Appelez-nous	-
12	4452059		Door Glass Assy (black Model)		Appelez-nous	-
12	8300527		Door Glass Assy (biscuit Model)		Appelez-nous	-
12	4452060		Door Glass Assy (white Model)		Appelez-nous	-
13	4448403		Door Handle (white Model)		Appelez-nous	-
13	4448402		Door Handle (black Model)		Appelez-nous	-
13	8300512		Door Handle (biscuit Model)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
14	4450813		Bracket, Handle				$ 24.20
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	4450360		Shield, Heat		Appelez-nous	-
20	4451668		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
21	4451672		Seal, Door Top		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
24	4455255		Glass, Inner		Appelez-nous	-
