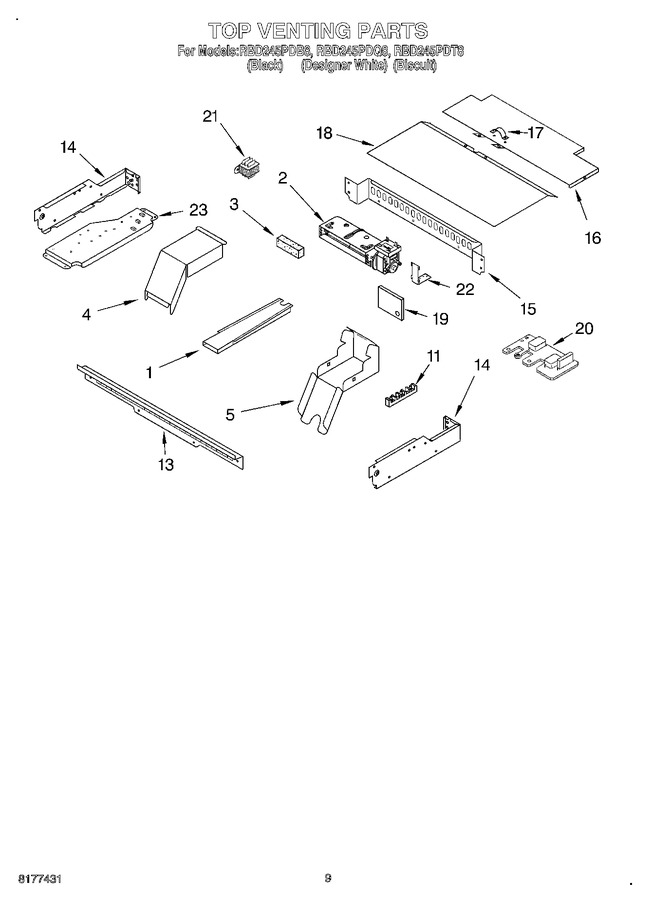

07 - Top Venting


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451759		Vent, Exhaust				$ 90.01
2	4455334		Blower				$ 224.67
3	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 6.98
4	4455178		Elbow, Vent- Top				$ 13.30
5	4455177		Elbow, Vent- Bottom				$ 9.77
11	WP3400016		Screw   (Replaces: 3400016)				$ 7.16
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
13	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
13	4448547		Vent, (control Panel)				$ 95.23
14	W10790240		Side, Control Top (left)   (Replaces: 4451598)				$ 67.21
14	WP4449154		Side, Control Top (screw)   (Replaces: 4449154)				$ 6.80
14	WP4449809		Side, Control Top (screw)   (Replaces: 4449809)			Immediately	$ 6.47
14	W10755214		Side, Control Top (right)   (Replaces: 4451597)		Appelez-nous	-
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
15	4452244		Back, Control		Appelez-nous	-
16	4450549		Cover, Top Rear		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
17	WP112432		Nut   (Replaces: 112432)				$ 7.16
17	4448664		Clamp				$ 18.35
17	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
18	4452365		Cover, Top Front		Appelez-nous	-
19	4454943		Plate, Fan		Appelez-nous	-
20	WP4451985		Suppressor   (Replaces: 4451985)				$ 148.69
21	4451891		Transformer, Single Control		Appelez-nous	-
22	WP4455352		Bracket, Blower   (Replaces: 4455352)				$ 32.15
23	814381		Pin Hinge Kit				$ 7.73
23	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
23	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
23	WPW10339879		Tie, Cable   (Replaces: 4454842)				$ 7.11
23	WP4448950		Screw, Install. 8-14 X 1`` (4)   (Replaces: 4448950)				$ 6.80
23	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
23	4451789		Plate, Mounting		Appelez-nous	-
23	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 23.85
23	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
23	261900		Citrine White				$ 51.34
23	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
23	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
23	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
23	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
23	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
23	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
23	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
23	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
23	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
23	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
23	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
23	242831		Wire (14 Ga. 200 C Red)				$ 342.23
23	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
23	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
23	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
23	4455350		Harness, Wire Std (main)		Appelez-nous	-
23	4450953		Conduit, Double				$ 311.24
23	4450800		Screw				$ 11.55
23	4448664		Clamp				$ 18.35
23	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
23	WP112432		Nut   (Replaces: 112432)				$ 7.16
23	4452222		Spacer, Harness		Appelez-nous	-
23	WPW10339879		Tie, Cable   (Replaces: 4454835)				$ 7.11
23	4451761		Support, Wiring		Appelez-nous	-
