Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP4455606 Hinge Receiver (right)   (Replaces: 4455606) In-Stock Immediately $ 107.47

1 WP4455605 Hinge Receiver (left)   (Replaces: 4455605) In-Stock Immediately $ 103.82

4 4448520 Bumper, Door Special Order $ 19.07

9 W10861715 Tube, Vent   (Replaces: 4452158) Special Order $ 104.97

10 4452165 Lens, Light Appelez-nous -
11 4452368 Oven Light Assy Appelez-nous -
12 WP4173175 Bulb, Light   (Replaces: 4452166) In-Stock Immediately $ 48.26

14 4455611 Frame, Front Appelez-nous -
14 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

15 WP4455381 Gasket, Door   (Replaces: 4455381) Special Order $ 159.09

19 4451477 Support, Insulation Appelez-nous -
19 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

20 4451605 Cap, Spacer Special Order $ 38.55

21 WP4449154 Rail, Side (screw)   (Replaces: 4449154) Special Order $ 6.80

21 814374 Rail, Side (left Side)   (Replaces: 4450582) Special Order $ 204.20

21 WP4448444 Rail, Side (grommet)   (Replaces: 4448444) Special Order $ 6.73

21 814373 Rail, Side (right Side)   (Replaces: 4450581) Special Order $ 203.87

24 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

24 WPW10195934 Latch, Motorized   (Replaces: 9759481) In-Stock Immediately $ 259.79

25 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

25 W10782197 Side, Chassis (r.h. & L.h.)   (Replaces: 4455641) Special Order $ 129.16

26 4452233 Back, Chassis Appelez-nous -
26 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

27 N/A Liner, Oven (not Serviceable) Appelez-nous -
29 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

29 WPW10131825 Sensor   (Replaces: 4455636) In-Stock Immediately $ 86.25

34 4452266 Vent, Center Special Order $ 60.71

37 WP9759243 Thermostat (tod) (temp.) Spst   (Replaces: 9759243) In-Stock Immediately $ 49.90

37 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

43 4455529 Base, Chassis Appelez-nous -
43 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

49 WP4448933 Retainer, Gasket   (Replaces: 4448933) Special Order $ 7.97

49 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

50 WP4451747 Cover-back   (Replaces: 4451747) Special Order $ 128.63

50 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

53 4450364 Insulation, Back Appelez-nous -
53 4449845 Support, Bracket Appelez-nous -
53 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

53 N/A Following Parts Not Illustrated Insulation Appelez-nous -
53 4449315 Insulation, Wrap Special Order $ 64.81


    View Diagram in Separate Window     Print Icon   Print Part List

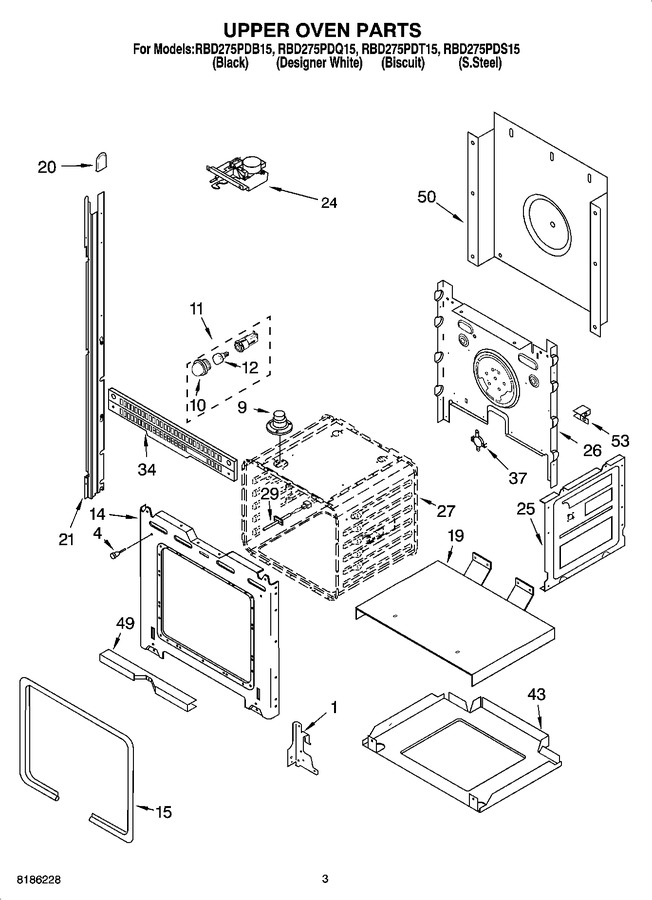

Diagram for RBD275PDQ15
