Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 WP9760771 Element, Broil   (Replaces: 4456103) In-Stock Immediately $ 104.77

2 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80

3 WP3195996 Grill, Broiler   (Replaces: 4457277) Special Order $ 82.63

4 WP3196076 Pan, Broiler   (Replaces: 4457276) Special Order $ 279.38

6 4448715 Rack, Oven Special Order $ 80.66

6 9759322 Pad, Rack Appelez-nous -
7 WPW10207397 Element, Bake   (Replaces: 4452153) In-Stock Immediately $ 69.44

7 WP4449154 Screw   (Replaces: 4449154) Special Order $ 6.80


    View Diagram in Separate Window     Print Icon   Print Part List

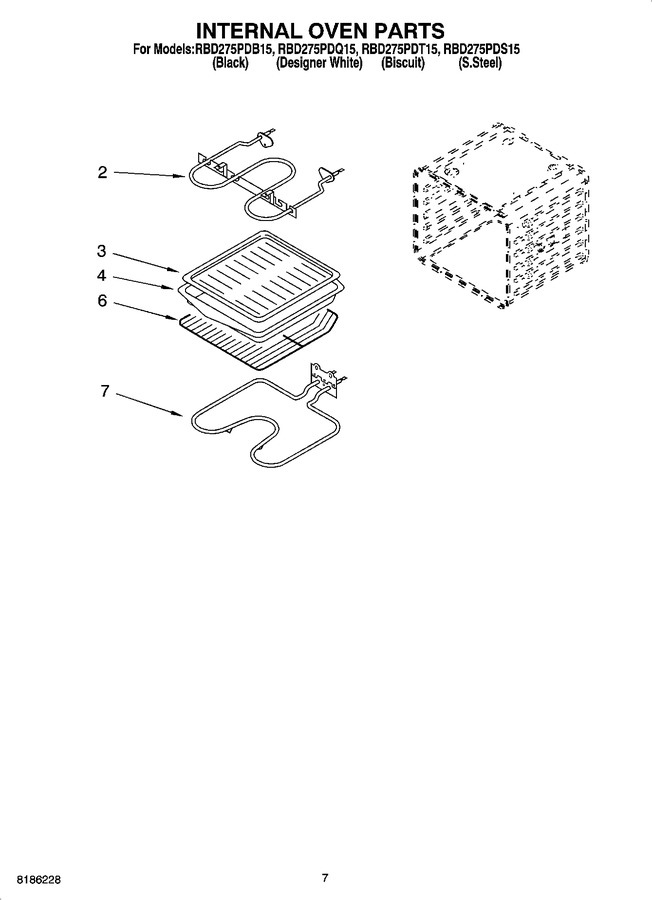

Diagram for RBD275PDQ15
