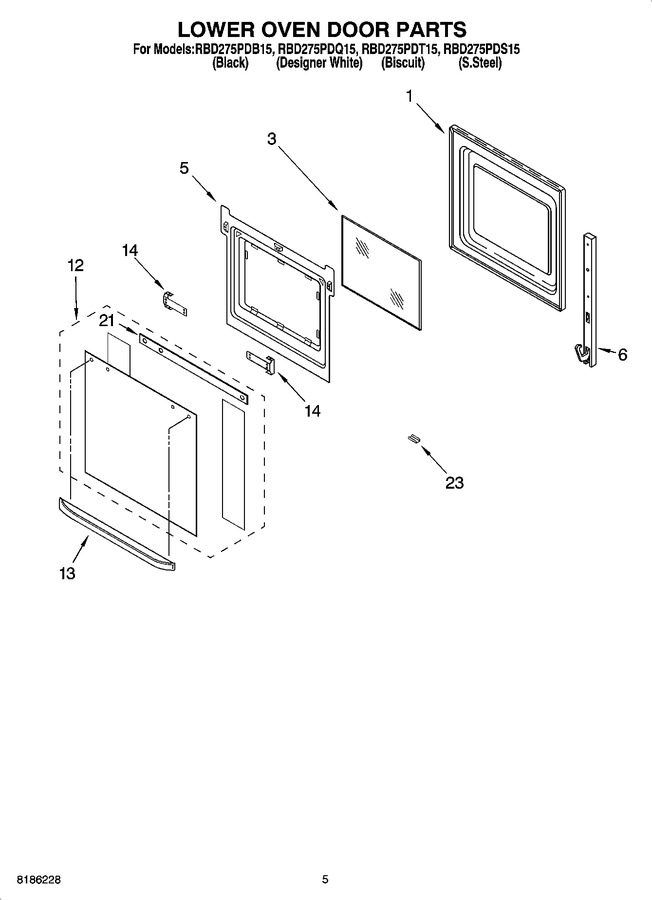

03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455617		Door Liner		Appelez-nous	-
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	8300777		Retainer, Glass		Appelez-nous	-
6	WP9760563		Hinge, Door (r.side (grey))   (Replaces: 9760563)				$ 80.28
6	8300565		Hinge, Door (r.side (lt.brown))		Appelez-nous	-
6	9760570		Hinge, Door (l.side (lt.brown))   (Replaces: 8300570)				$ 100.91
6	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 6.47
6	9760564		Hinge, Door (l.side (grey))		Appelez-nous	-
12	8300904		Door Glass Assy (biscuit)		Appelez-nous	-
12	8300912		Door Glass, Assy (black Model)				$ 129.30
12	8300911		Door Glass, Assy (white Model)				$ 126.26
12	9759073		Door Glass, Assy (s.steel Model)		Appelez-nous	-
13	4448405		Door Handle (black Model)		Appelez-nous	-
13	8300255		Door Handle (biscuit Model)		Appelez-nous	-
13	4448406		Door Handle (white Model)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
14	4450813		Bracket, Handle				$ 24.20
21	8300819		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit Model)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
