SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door Assembly


04 - Front Closure Assy.


05 - Liner


06 - Motor Assy.


07 - Thermal Bulb Clip

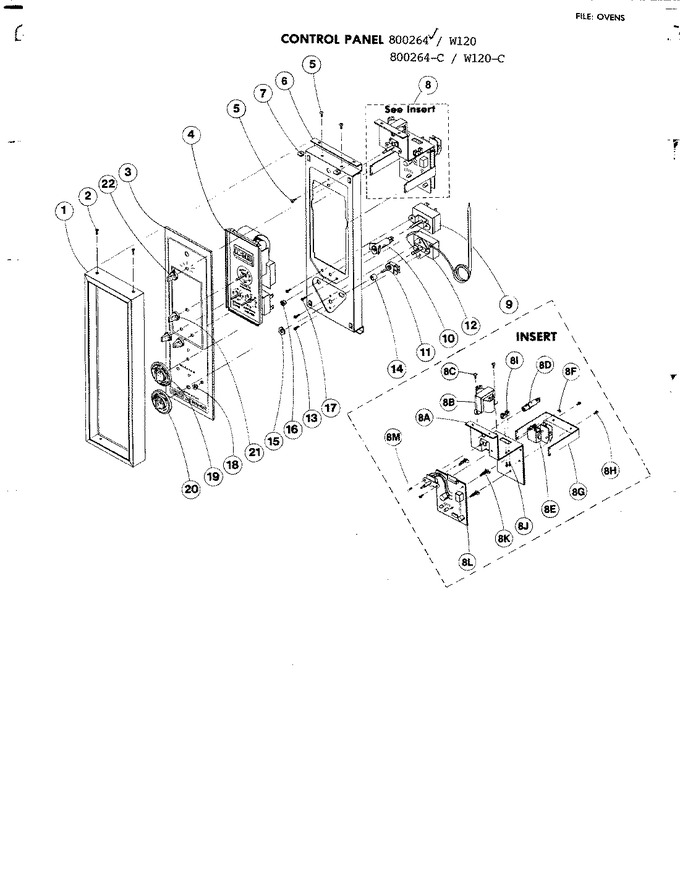

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	700554		Control Panel Glass		Appelez-nous	-
2	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
3	700555		Clock Timer				$ 36.97
4	WP90767		Screw   (Replaces: 715773)			Immediately	$ 7.04
5	Y700556		Clip, J		Appelez-nous	-
6	Y700557		Light, Indicator		Appelez-nous	-
7	700656		Switch, Push		Appelez-nous	-
7	700558		Switch, Light (push)		Appelez-nous	-
8	715398		Selector Switch		Appelez-nous	-
9	Y700559		Thermostat Assembly		Appelez-nous	-
10	700560		Control Panel Mounting Plate		Appelez-nous	-
11	715867		Screw		Appelez-nous	-
12	Y700630		Lens, Indicator Lights				$ 4.18
13	00700879		Nut-hex   (Replaces: 700879)				$ 192.83
14	700561		Thermostat Knob		Appelez-nous	-
15	NO LONGER AVAILAB		Select Knob   (Replaces: 700562)		Appelez-nous	-
16	DD81-03919A		Switch Bezel   (Replaces: 700563)				$ 237.74
17	700564		Knob, Clock		Appelez-nous	-
18	DE81-07472A		Control Panel Frame   (Replaces: 700565)				$ 312.75
18	715938		Pad, Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
