View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door Assembly
04 - Front Closure Assy.
05 - Liner
06 - Motor Assy.

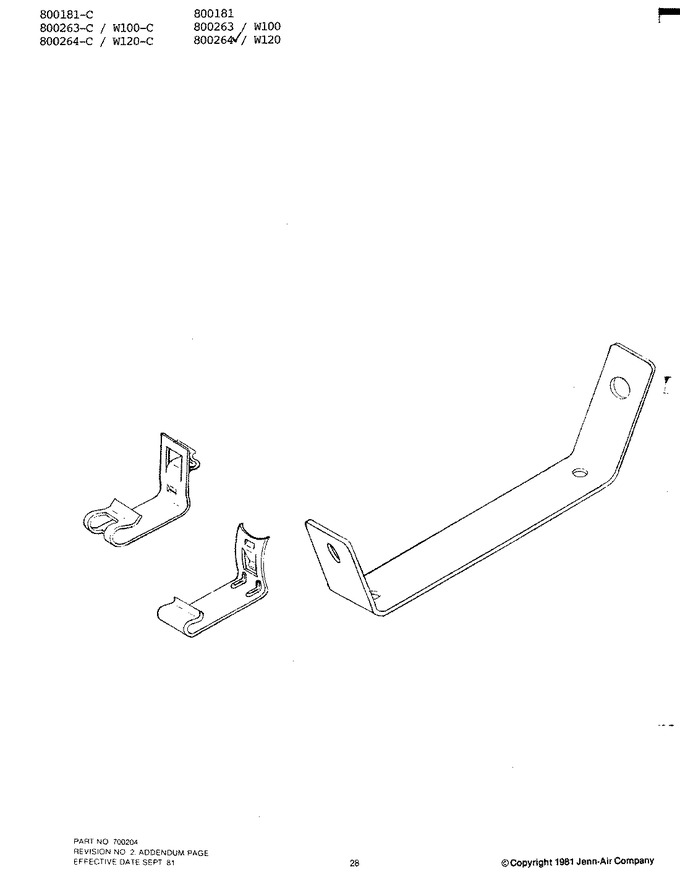

07 - Thermal Bulb Clip
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 700604 | Wire |
|
- | |||||
| 2 | 700605 | Wire |
|
- | |||||
| 3 | WP210720 | Rivet (Replaces: Y708088) |
|
$ 12.14 | |||||
| 3 | COMM PART | Blower Housing Assembly (Replaces: 700137) |
|
- | |||||
| 3 | 715614 | Splitter |
|
- | |||||
| 4 | 700606 | Vent Insulation |
|
- | |||||
| 6 | W11233072 | Screw (Replaces: Y707347) |
|
Immediately | $ 12.62 | ||||
| 7 | 700607 | Vent Assembly |
|
- | |||||
| 8 | 00700608 | Tinnerman (Replaces: 700608) |
|
$ 26.44 | |||||
| 9 | 715488 | Filter Retainer Clip |
|
- | |||||
| 9 | WP210720 | Rivet (Replaces: Y708088) |
|
$ 12.14 | |||||
| 9 | 715293 | Oven Bolt |
|
- | |||||
| 9 | 715294 | Nut, Tee |
|
- | |||||
| 9 | 715295 | Washer |
|
- | |||||
| 9 | 715617 | Washer (teflon) |
|
- | |||||
| 9 | 715777 | Spacer |
|
- | |||||
| 9 | 700609 | Oven Liner Assembly |
|
- | |||||
| 10 | 700610 | Wire,(black) |
|
- | |||||
| 11 | 700611 | Wire,(white) |
|
- | |||||
| 12 | DE81-04194A | Light Guard (Replaces: 700612) |
|
$ 238.80 | |||||
| 13 | DE81-02150A | Light Receptacle (Replaces: 700613) |
|
$ 74.11 | |||||
| 14 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) |
|
Immediately | $ 16.80 | ||||
| 15 | 715279 | Oven Bottom |
|
- | |||||
| 16 | 715424 | Rack Support |
|
- | |||||
| 17 | DE81-02107A | Wire (Replaces: 700614) |
|
$ 69.67 | |||||
| 18 | M0282005 | Nut,no.6-32 Hex (Replaces: Y707149) |
|
$ 7.07 | |||||
| 19 | 700615 | Wire |
|
- | |||||
| 20 | 700616 | Wire |
|
- | |||||
| 21 | 700617 | Retaining Bracket |
|
- | |||||
| 22 | Y707150 | Screw |
|
- | |||||
| 23 | 715276 | Oven Rack |
|
- | |||||
| 24 | Y700618 | Bake Element Assembly |
|
- | |||||
| 25 | WP179051 | Screw (Replaces: 708764) |
|
Immediately | $ 7.16 | ||||
| 26 | Y700619 | Element, Broil |
|
- | |||||
| 27 | 715617 | Washer (teflon) |
|
- | |||||
| 27 | 715488 | Filter Retainer Clip |
|
- | |||||
| 27 | 770456 | Control Panel Assembly |
|
- | |||||
| 27 | WP210720 | Rivet (Replaces: Y708088) |
|
$ 12.14 | |||||
| 28 | 715533 | Insulation Back |
|
- | |||||
| 28 | 700620 | Insulation Bottom |
|
- | |||||
| 28 | 715526 | Convective Filter |
|
$ 34.73 | |||||
| 28 | 715532 | Insulation Wrap |
|
- | |||||
| 28 | 700621 | Insulation, Staple |
|
$ 66.26 | |||||
| 29 | Y700883 | Jack, Probe |
|
- | |||||
| 30 | WP71001870 | Probe, Meat (Replaces: Y700884) |
|
$ 201.71 | |||||
| 31 | 700876 | Test Plug |
|
- | |||||
| 31 | 700885 | Button, Plug |
|
- |
