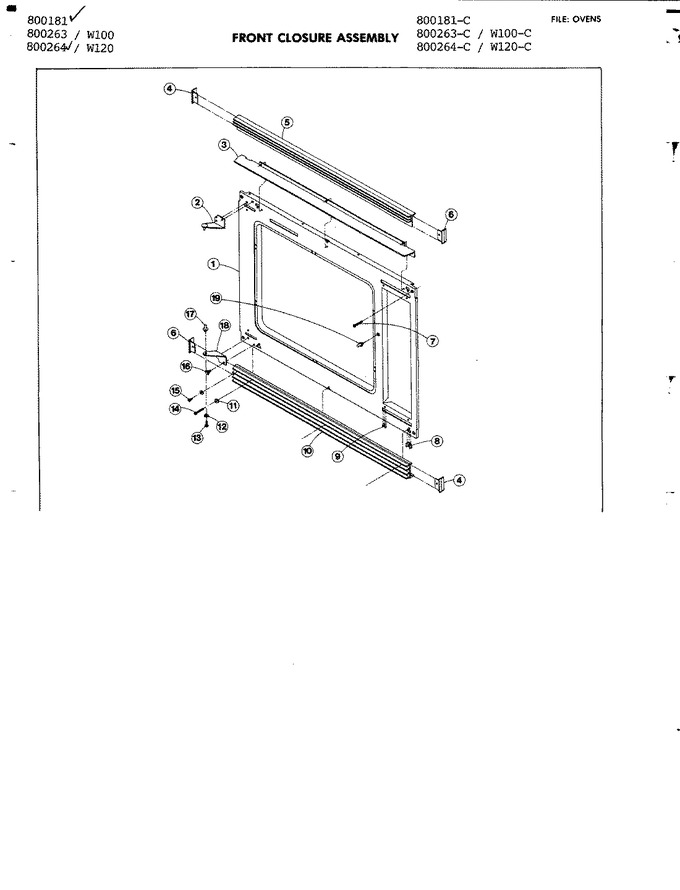

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	700566		Oven Door Frame		Appelez-nous	-
2	700567		Outer Glass		Appelez-nous	-
3	715938		Pad, Spacer		Appelez-nous	-
4	700568		Door Liner Assembly		Appelez-nous	-
5	700569		Inner Window Package		Appelez-nous	-
6	715368		Oven Door Seal		Appelez-nous	-
7	WP486255		No Longer Available   (Replaces: 788098)				$ 5.54
8	Y700503		Clip, Retainer		Appelez-nous	-
9	715622		Insulation		Appelez-nous	-
10	715315		Door Insulation Kit		Appelez-nous	-
11	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
12	Y700570		Screw		Appelez-nous	-
13	Y700446		Washer				$ 5.27
14	715939		Bushing		Appelez-nous	-
15	700571		Handle		Appelez-nous	-
16	700572		Bushing		Appelez-nous	-
17	700573		Door Catch		Appelez-nous	-
18	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
19	715838		Bracket		Appelez-nous	-
20	701832		Post, Mounting		Appelez-nous	-
20	701833		Handle Assembly		Appelez-nous	-
