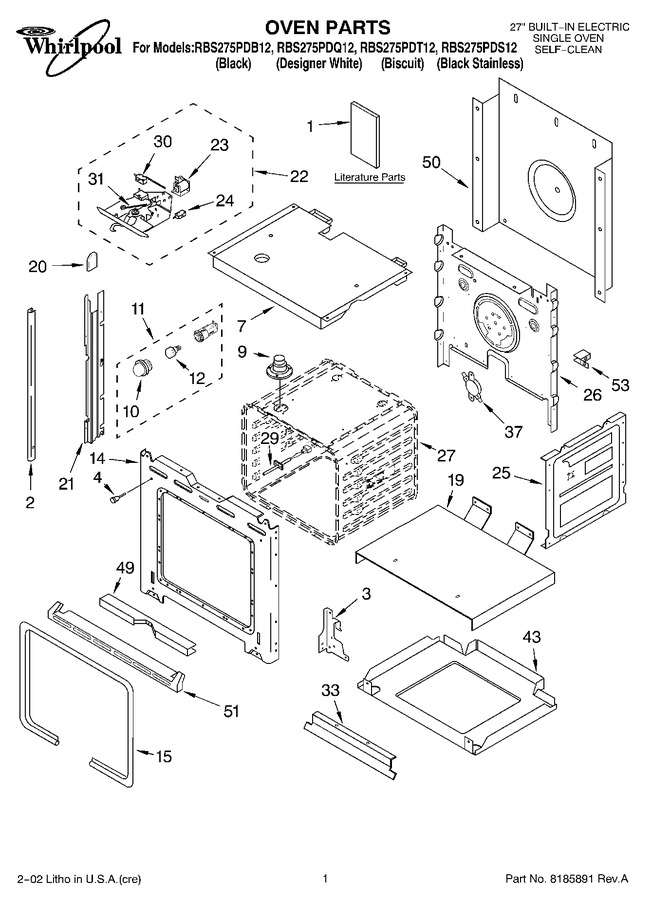

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8300655		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8300772		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT3192225		Literature Parts (installation/ Undercounter)		Appelez-nous	-
1	LIT4450841		Literature Parts (installation/ Mwo Trim Kit)		Appelez-nous	-
1	LIT4451884		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	4452120		Trim, Side (rh Biscuit)		Appelez-nous	-
2	4450844		Trim, Side (rh Black)		Appelez-nous	-
2	4450848		Trim, Side (lh White)		Appelez-nous	-
2	4452121		Trim, Side (lh Biscuit Screw)		Appelez-nous	-
2	WP8281236		Trim, Side (black Model)   (Replaces: 4449747)				$ 6.80
2	WP8281236		Trim, Side (white)   (Replaces: 8281236)				$ 6.80
2	4450847		Trim, Side (lh Black)		Appelez-nous	-
2	4450845		Trim, Side (rh White)		Appelez-nous	-
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 103.82
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 107.47
4	4448520		Bumper, Door				$ 19.07
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	4455285		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 48.26
14	4455611		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 159.09
19	4451477		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 6.73
21	814371		Rail, Side (right Side)   (Replaces: 4450579)				$ 109.53
21	814372		Rail, Side (left Side)   (Replaces: 4450580)				$ 108.63
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 6.80
22	4451896		Latch Assy				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
24	4452312		Microswitch N.c.				$ 90.43
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 129.16
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
26	4452233		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 86.25
29	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
30	4451426		Switch, Micro		Appelez-nous	-
31	4451537		Spring, Latch		Appelez-nous	-
33	4450280		Deflector, Vent		Appelez-nous	-
37	WP9759243		Thermostat (tod)   (Replaces: 4451442)			Immediately	$ 49.90
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
43	4455529		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 7.97
49	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 128.63
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
51	WP3400832		Trim, Bottom (screw)   (Replaces: 3400832)			Immediately	$ 6.98
51	4448475		Trim, Bottom (black Model)		Appelez-nous	-
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
51	4452414		Trim, Bottom (biscuit Model)		Appelez-nous	-
53	4449845		Support, Bracket		Appelez-nous	-
53	4450364		Insulation, Back		Appelez-nous	-
53	4449315		Insulation, Wrap				$ 64.81
53	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
