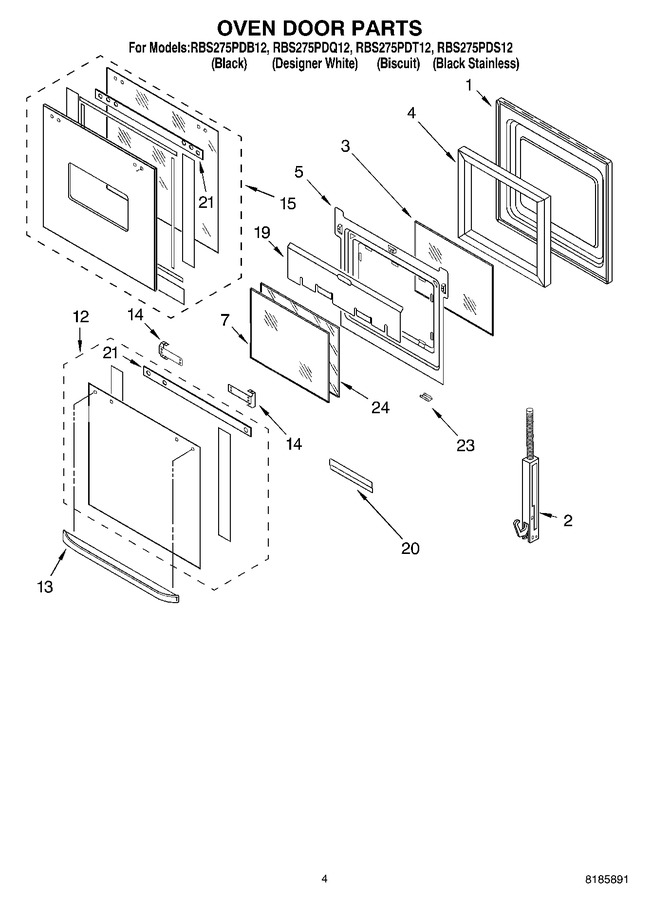

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455617		Door Liner		Appelez-nous	-
2	WP9760572		Hinge, Door (l.side (white))   (Replaces: 8300572)				$ 95.97
2	9760570		Hinge, Door (l.side (green))   (Replaces: 8300570)				$ 100.91
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 6.47
2	9760569		Hinge, Door (r.side (green))   (Replaces: 8300569)				$ 101.50
2	WP9760571		Hinge, Door (r.side (white))   (Replaces: 8300571)			Immediately	$ 98.15
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
4	4451721		Insulation, Door				$ 37.62
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	8300777		Retainer, Glass		Appelez-nous	-
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 178.55
12	4452062		Door Glass Assy (black Model)		Appelez-nous	-
12	8300257		Door Glass Assy (biscuit)		Appelez-nous	-
12	4452063		Door Glass, Assy (white)		Appelez-nous	-
13	4448406		Door Handle (white)		Appelez-nous	-
13	4448405		Door Handle (black)		Appelez-nous	-
13	8300255		Door Handle (biscuit)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
14	4450813		Bracket, Handle				$ 24.20
15	8300905		Door Glass, Assy (black Stainless)		Appelez-nous	-
19	4450361		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	4451668		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
21	8300819		Seal, Door		Appelez-nous	-
23	4450863		Retainer, Clip (black)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit)		Appelez-nous	-
23	4450864		Retainer, Clip (white)		Appelez-nous	-
23	WP3400832		Retainer, Clip (screw)   (Replaces: 3400832)			Immediately	$ 6.98
24	4455256		Glass, Inner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
