New Model Search:

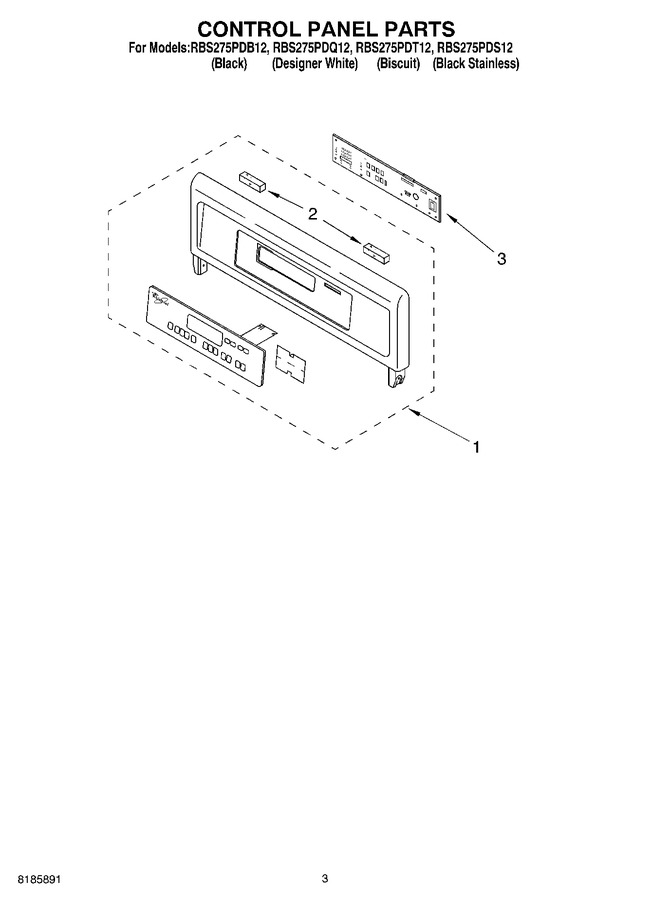

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8300454 | Control Panel Assy. W/membrane Switch (black Model) |
|
$ 234.64 | |||||
| 1 | 8300453 | Control Panel Assy. W/membrane Switch (white Model) |
|
$ 236.55 | |||||
| 1 | 8300532 | Control Panel Assy. W/membrane Switch (biscuit Model) |
|
- | |||||
| 1 | WP3400832 | Control Panel Assy. W/membrane Switch (screw) (Replaces: 8281179) |
|
Immediately | $ 6.98 | ||||
| 2 | 4451033 | Gasket, Control Panel |
|
- | |||||
| 3 | 4452892 | Microcomputer |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 3 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 |
