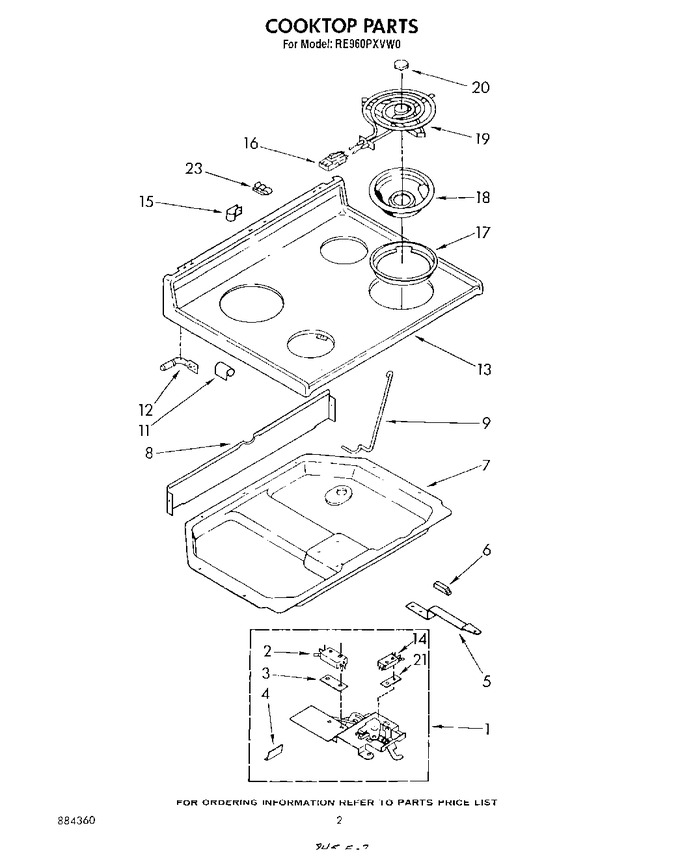

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
1	3171148		Latch Assembly (pyro)		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
4	313035		Shield, Latch Terminal		Appelez-nous	-
5	WP488627		Screw, 8-18 X 1/2   (Replaces: 313349)				$ 6.81
5	311056		Screw (2)		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
5	3147065		Handle, Latch		Appelez-nous	-
6	3148684		Knob, Latch		Appelez-nous	-
7	3148980		Burner Box		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
8	307973		Shield, Wiring		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
9	3148659		Rod, Cooktop		Appelez-nous	-
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	3170982		Cooktop (almond)		Appelez-nous	-
13	3170981		Cooktop (white)		Appelez-nous	-
13	WP308685		Cooktop (screw, 10a X 1/2 10-32 X 1/2)   (Replaces: 253549)			Immediately	$ 7.08
14	3148669		Switch, Safety		Appelez-nous	-
14	313489		Screw 4-40 X 5/8 (2)		Appelez-nous	-
15	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
15	WP308605		Strain Relief   (Replaces: 308604)				$ 10.08
16	WP313808		Screw, 6-32 X 1/4 (4)   (Replaces: 313808)				$ 6.84
16	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 14.48
17	W10858781		Adapter Ring (8`` (2))   (Replaces: 3148354)				$ 85.64
17	W10854470		Adapter Ring (6`` (2))   (Replaces: 3148353)				$ 81.37
18	W10291024		Reflector Pan (8`` (2))   (Replaces: 3148407)			Immediately	$ 49.90
18	W10291024		Reflector Pan (6`` (2))   (Replaces: 3148406)			Immediately	$ 49.90
19	WP660533		Unit, Surface 8`` (240v) (2) 309186 (alt.) 313965 (alt.) (includes Illus. 20)   (Replaces: 660531)			Immediately	$ 39.47
19	WP660532		Unit, Surface 6`` (240v) (2) 309122 (alt.) 313967 (alt.)   (Replaces: 660529)			Immediately	$ 36.90
20	309195		Medallion (4)		Appelez-nous	-
21	3147864		Insulator, Switch		Appelez-nous	-
23	313570		Clamp, Tube		Appelez-nous	-
