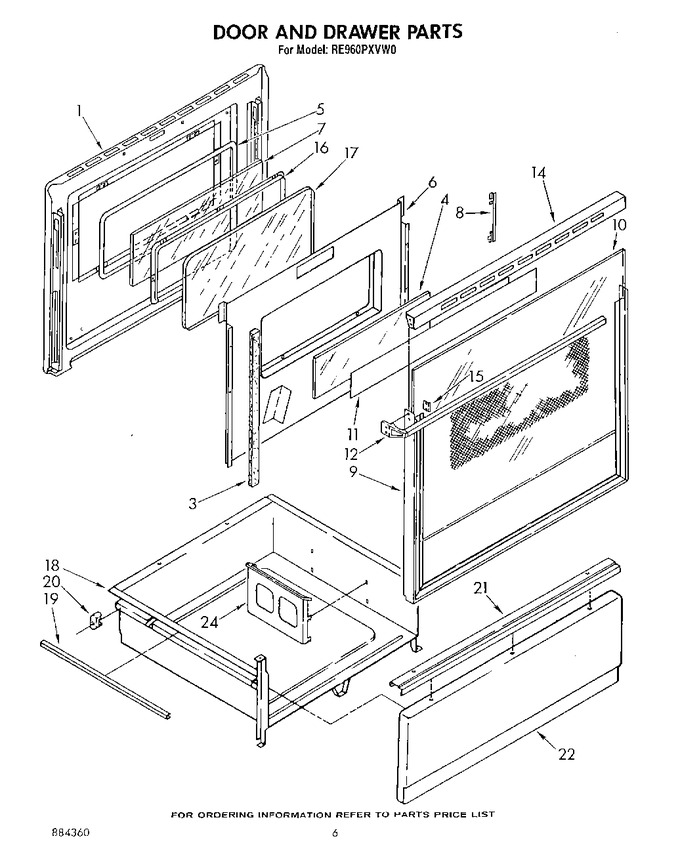

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307748		Screw, 10 X 1/2 (9)		Appelez-nous	-
1	3170706		Liner, Door		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3148178		Glass, Reflective		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148443		Screw, 8-18 X 5/16 (4)		Appelez-nous	-
6	3148159		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Inner Door   (Replaces: 313004)				$ 135.71
8	3148187		Retainer, Reflective Glass		Appelez-nous	-
9	3148235		Frame, Oven Door		Appelez-nous	-
10	3148185		Glass, Door (black Panoramic)		Appelez-nous	-
11	3148184		Foil, Panoramic Door		Appelez-nous	-
12	3148228		Handle, Oven Door		Appelez-nous	-
14	307748		Screw, 10x1/2 (2)		Appelez-nous	-
14	3148223		Top, Oven Door Trim		Appelez-nous	-
15	3148282		Clip, Handle Mtg. (2)				$ 8.69
16	3148234		Frame, Inner Glass		Appelez-nous	-
16	3148443		Screw, 8-18 X 5/16 (6)		Appelez-nous	-
17	WP3169203		Glass, Outer Door   (Replaces: 313005)				$ 135.71
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer (2)		Appelez-nous	-
20	307980		Glide, Rear (2)		Appelez-nous	-
20	307748		Screw, 10x1/2 (2)		Appelez-nous	-
21	307935		Panel Drawer (white)		Appelez-nous	-
21	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 9.52
21	307939		Panel, Drawer (almond)		Appelez-nous	-
22	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
22	313337		Handle, Drawer		Appelez-nous	-
24	357645		Rack, Literature		Appelez-nous	-
