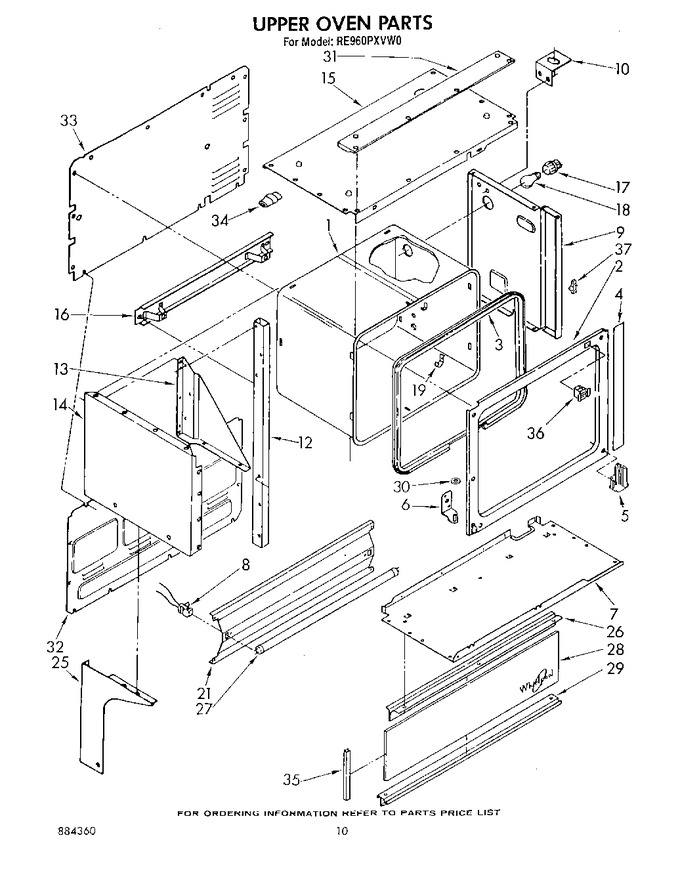

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327903		Oven (continuous Clean)		Appelez-nous	-
2	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
2	313792		Frame, Front		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.07
2	254217		Screw, 10a X 3/8 (2)		Appelez-nous	-
3	311591		Seal, Door		Appelez-nous	-
4	309246		Shield, Upper Oven		Appelez-nous	-
5	WP965173		Screw, 8 X 3/8 (4)   (Replaces: 246132)			Immediately	$ 9.65
5	309536		Latch Plate (upper Oven)		Appelez-nous	-
5	308043		Screw, 10-12 X 7/8		Appelez-nous	-
6	246076		Screw, 10-24 X 3/8 (2)		Appelez-nous	-
6	328182		Bracket, Hinge		Appelez-nous	-
7	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
7	312783		Bumber (4)		Appelez-nous	-
7	313330		Bottom Panel		Appelez-nous	-
8	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
8	313138		Socket Assembly L.h.		Appelez-nous	-
8	313137		Socket Assembly R.h.		Appelez-nous	-
9	308090		Baffle		Appelez-nous	-
9	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
10	308839		Bracket, Receptacle		Appelez-nous	-
10	WP681414		Screw, 10-16 X 1/2 (3)   (Replaces: 343641)			Immediately	$ 7.07
12	313329		Support, Tubing L.h.		Appelez-nous	-
12	313327		Support, Tubing R.h.		Appelez-nous	-
13	312812		Gusset, L.h.		Appelez-nous	-
13	312810		Gusset, R.h.		Appelez-nous	-
13	WP681414		Screw, 10-16 X 1/2 (6)   (Replaces: 343641)			Immediately	$ 7.07
14	WP488627		Panel, Side L.h. (screw, 8a X 1/2 (2))   (Replaces: 338156)				$ 6.81
14	308043		Panel, Side L.h. (screw, 10-12 X 7/8 (2))		Appelez-nous	-
14	312457		Panel, Side L.h. (white)		Appelez-nous	-
14	WP681414		Panel, Side L.h. (screw, 10-16 X 1/2 (8))   (Replaces: 343641)			Immediately	$ 7.07
14	312453		Panel, Side L.h. (almond Panel, Side R.h.)		Appelez-nous	-
14	312449		Panel, Side L.h. (white)		Appelez-nous	-
14	312461		Panel, Side L.h. (almond)		Appelez-nous	-
15	WP965173		Panel, Top (screw, 8a X 3/8 (8))   (Replaces: 246132)			Immediately	$ 9.65
15	254217		Panel, Top (screw, 10a X 3/8 (3))		Appelez-nous	-
15	313796		Panel, Top (white)		Appelez-nous	-
15	313798		Panel, Top (almond)		Appelez-nous	-
16	327917		Support, Oven		Appelez-nous	-
16	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
16	306280		Bolt (2)		Appelez-nous	-
16	306381		Nut, Retainer (2)		Appelez-nous	-
17	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
17	660556		Socket, Light 307856 (alt.) 310208 (alt.)		Appelez-nous	-
18	8009		Bulb, Light   (Replaces: 311255)			Immediately	$ 16.80
19	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
21	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
21	313577		Panel, Backguard		Appelez-nous	-
25	330197		End Trim R.h. (almond End Trim L.h.)		Appelez-nous	-
25	WP681414		End Trim R.h. (screw, 10-16 X 1/2 (4))   (Replaces: 343641)			Immediately	$ 7.07
25	330203		End Trim R.h. (almond)		Appelez-nous	-
25	330200		End Trim R.h. (white)		Appelez-nous	-
25	330194		End Trim R.h. (white)		Appelez-nous	-
26	WP488627		Screw, 8a X 1/2 (4)   (Replaces: 338156)				$ 6.81
26	313320		Trim, Glass (top)		Appelez-nous	-
27	WP95292		Lamp, Fluorescent   (Replaces: 95292)			Immediately	$ 121.45
28	313322		Panel, Glass		Appelez-nous	-
29	WP488627		Screw, 8a X 3/8 (2)   (Replaces: 338156)				$ 6.81
29	313321		Trim, Glass (bottom)		Appelez-nous	-
29	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
30	306615		Washer, Nylon (2)		Appelez-nous	-
31	327916		Trim, Top		Appelez-nous	-
32	308112		Cover, Rear		Appelez-nous	-
32	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 7.07
33	309507		Rear Cover		Appelez-nous	-
33	WP681414		Screw, 10-16 X 1\2 (14)   (Replaces: 343641)			Immediately	$ 7.07
34	WP75614		Connector (3)   (Replaces: 309551)				$ 44.41
35	313319		Trim, End (glass) (2)		Appelez-nous	-
36	313793		Catch, Door		Appelez-nous	-
37	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
37	3147621		Fuse, Thermal		Appelez-nous	-
