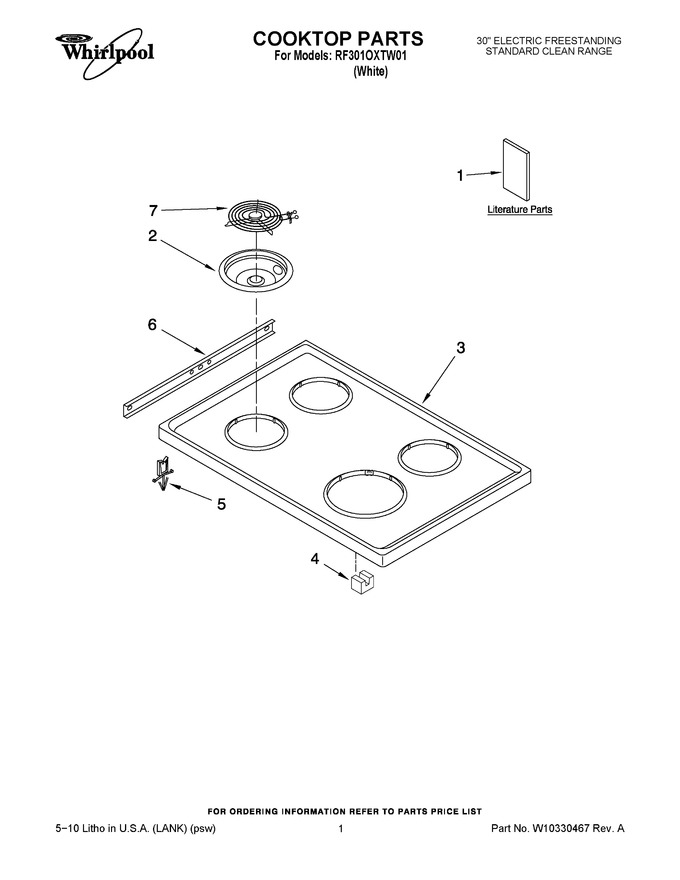

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8113P683-60 | Owners Manual |
|
- | |||||
| 1 | 8119P449-60 | Diagram, Wiring |
|
- | |||||
| 1 | 8101P748-60 | Instructions, Installation |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | WPW10196406 | Bowl, Drip (6`` (rr)) (Replaces: 7725P015-60) |
|
Immediately | $ 12.05 | ||||
| 2 | WPW10196406 | Bowl, Drip (6`` (lf/lr)) (Replaces: 7725P053-60) |
|
Immediately | $ 12.05 | ||||
| 2 | WPW10196405 | Bowl, Drip (8`` (rf)) (Replaces: 7725P054-60) |
|
Immediately | $ 15.56 | ||||
| 3 | 2002W105-81 | Cooktop |
|
- | |||||
| 4 | 8255P412-60 | Support, Element |
|
$ 31.52 | |||||
| 5 | 7112P029-60 | Clip |
|
- | |||||
| 6 | 3802F085-80 | Brace |
|
- | |||||
| 7 | WPW10345407 | Element, Surface (6`` (3) Lf/lr/rr) (Replaces: 7406P475-60) |
|
Immediately | $ 141.79 | ||||
| 7 | WP9761346 | Element, Surface (8``(1) Rf) (Replaces: 7406P476-60) |
|
Immediately | $ 94.16 |
