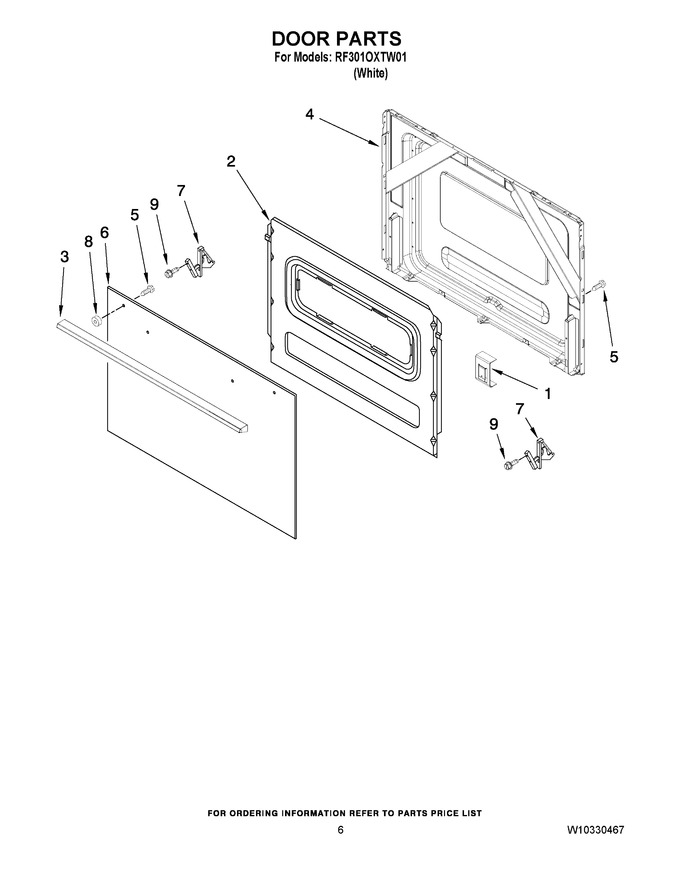

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7112P034-60 | Clip, Door |
|
- | |||||
| 2 | 7002P318-60 | Insulation, Door |
|
- | |||||
| 3 | 2411F013-71 | Handle, Door |
|
$ 81.54 | |||||
| 4 | 2402W242-19 | Liner-door |
|
- | |||||
| 5 | WP3387230 | Screw (Replaces: 7101P483-60) |
|
Immediately | $ 7.69 | ||||
| 6 | 2401F096-71 | Panel, Oven Door |
|
- | |||||
| 7 | W10876639 | Hinge, Door (Replaces: 7106P078-60) |
|
$ 129.21 | |||||
| 8 | WP74005058 | Spacer, Handle (Replaces: 8010P089-60) |
|
$ 7.05 | |||||
| 9 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.29 |
