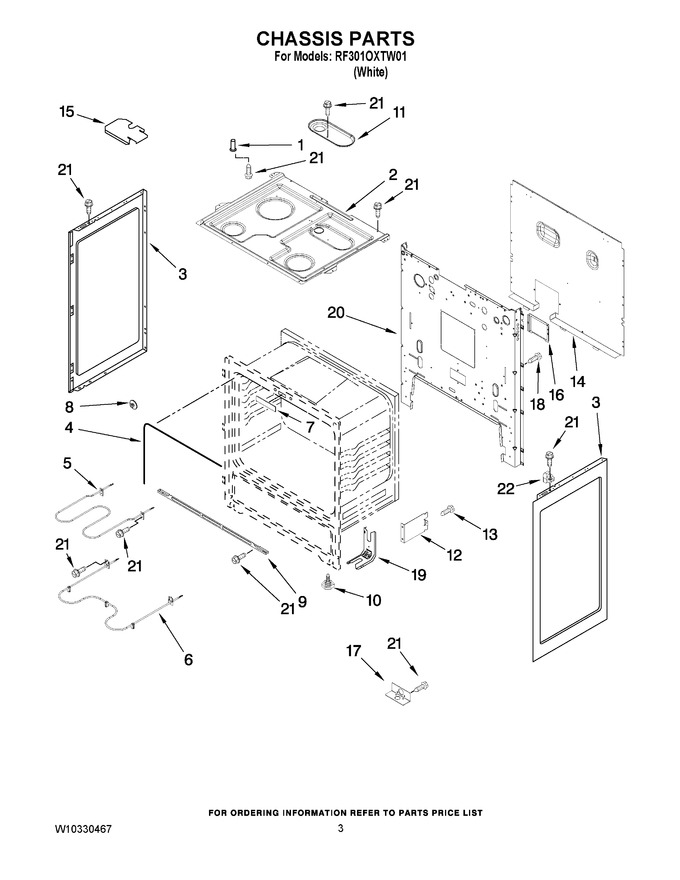

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P068-60		Vent Tube		Appelez-nous	-
2	4011F484-51		Box, Burner (bottom)		Appelez-nous	-
3	2618F194-71		Panel, Side (2)		Appelez-nous	-
4	WP7212P043-60		Seal, Oven Door   (Replaces: 7212P043-60)			Immediately	$ 56.83
5	WPW10310249		Element, Broil   (Replaces: W10310249)			Immediately	$ 112.33
6	WP74010750		Element, Bake   (Replaces: 7406P425-60)			Immediately	$ 47.69
7	7718P027-60		Plug, Door		Appelez-nous	-
8	W10857933		Spacer, Side Pnl   (Replaces: 8004P024-60)				$ 7.07
9	3807F494-45		Support, Broil		Appelez-nous	-
10	W11665456		Screw (leg Leveler)   (Replaces: 7101P507-60)			Immediately	$ 25.30
11	4005F432-45		Cover, Box		Appelez-nous	-
12	3807F400-51		Support, Oven Rear		Appelez-nous	-
13	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
14	4005F812-51		Cover, Main		Appelez-nous	-
15	4005F567-51		Cover, Lock Hole		Appelez-nous	-
16	4005F747-51		Cover, Terminal Block		Appelez-nous	-
17	W10190166		Bracket, Power Supply				$ 8.32
18	WP3400074		Screw   (Replaces: 7101P517-60)				$ 6.47
19	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 4.69
20	W10177185		Back, Main		Appelez-nous	-
21	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
22	8010P088-60		Spacer, Main Top (right)		Appelez-nous	-
22	8010P087-60		Spacer, Main Top (left)		Appelez-nous	-
NI	7002P211-60		Insulation, Wrap		Appelez-nous	-
NI	7002P216-60		Insulation, Back		Appelez-nous	-
