SELECT A DIAGRAM

Diagram for 02 - Cooktop
02 - Cooktop

Diagram for 03 - Oven
03 - Oven

Diagram for 04 - Door And Drawer
04 - Door And Drawer

Diagram for 05 - Oven (continued) , Literature And Optional
05 - Oven (continued) , Literature And Optional

Diagram for 06 - Control Panel
06 - Control Panel

Diagram for 07 - Wiring Harness
07 - Wiring Harness


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3147255 Cooktop (harvest Gold) Appelez-nous -
1 3147258 Cooktop (platinum) Appelez-nous -
1 3147254 Cooktop (white) Appelez-nous -
1 WP681414 Cooktop (screw 10-32 X 1/2)   (Replaces: 690989) In-Stock Immediately $ 7.07

1 3147256 Cooktop (almond) Appelez-nous -
1 3147257 Cooktop (toast) Appelez-nous -
2 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.07

2 307965 Bracket, Cooktop Appelez-nous -
3 WP3147132 Unit, Surface 8`` L.f. & R.r. (2)   (Replaces: 3147132) Special Order $ 272.69

3 WP3147131 Unit, Surface 6`` L.r. & R.f. (2)   (Replaces: 3147131) Special Order $ 244.76

4 3148048 Support, Cooktop Appelez-nous -
5 311311 Clip, Wire (4) Appelez-nous -
6 3147703 Bracket, Mounting 6``(2) Appelez-nous -
7 3147704 Bracket, Mounting 8`` (2) Appelez-nous -
8 3147191 Spring, Leaf (4) Appelez-nous -
9 3147189 Nut (4) Appelez-nous -
10 3147037 Cover, Vent Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

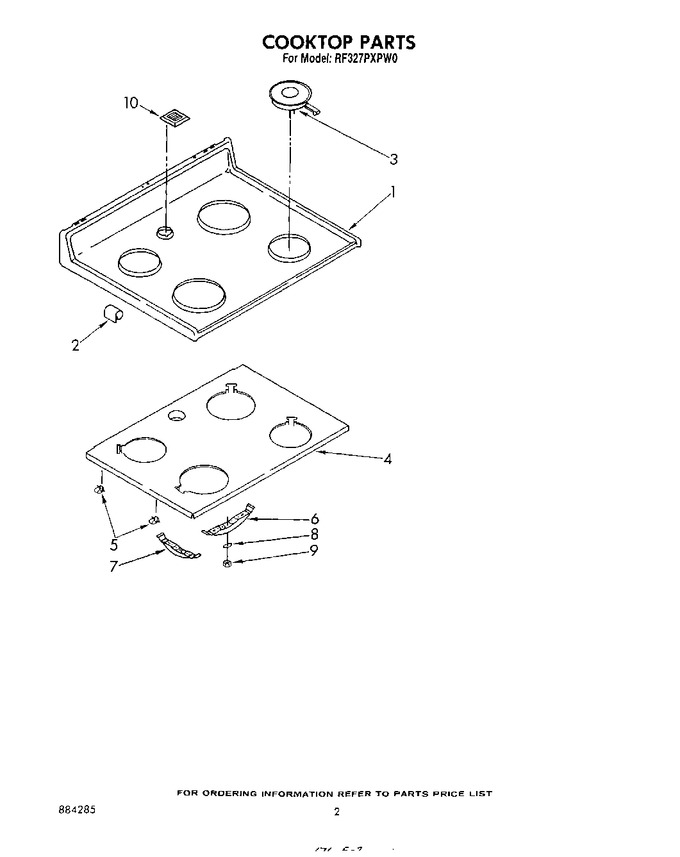

Diagram for RF327PXPW0
