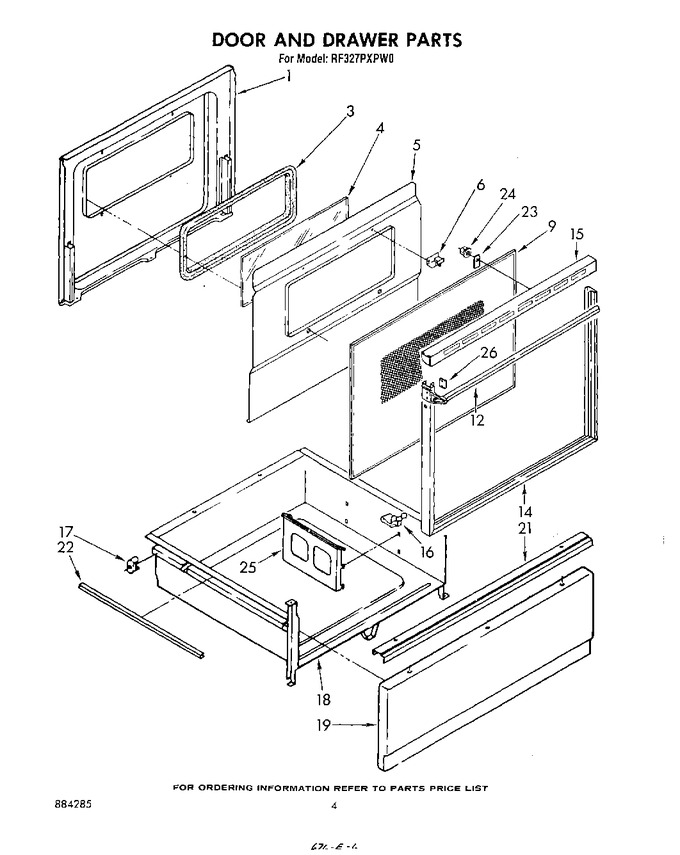

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311056		Screw, 10a X 1/2 (4)		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (5)		Appelez-nous	-
1	329685		Liner, Door		Appelez-nous	-
3	258711		Seal, Glass		Appelez-nous	-
4	258988		Glass, Inner		Appelez-nous	-
5	307924		Baffle, Insulation		Appelez-nous	-
6	3170094		Spacer (4)		Appelez-nous	-
6	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
12	WP355515		Screw, 8a X 7/8 (4)   (Replaces: 355515)				$ 6.90
12	312722		Handle, Oven Door				$ 118.10
14	310427		Frame, Door		Appelez-nous	-
15	310428		Top, Door Frame		Appelez-nous	-
16	310706		Clip, Glass (10)		Appelez-nous	-
17	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
17	307980		Glide, Rear (2)		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	307939		Panel, Drawer (almond)		Appelez-nous	-
19	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 9.52
19	313172		Panel, Drawer (platinum)		Appelez-nous	-
19	307935		Panel Drawer (white)		Appelez-nous	-
19	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
19	313171		Panel, Drawer (toast)		Appelez-nous	-
21	313337		Handle, Drawer		Appelez-nous	-
21	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
22	309329		Protector, Drawer (2)		Appelez-nous	-
23	310705		Clip (2)		Appelez-nous	-
24	WP90296		Fastener Pushnut (2)   (Replaces: 90296)				$ 7.07
25	357645		Rack, Literature		Appelez-nous	-
26	314235		Clip (2)		Appelez-nous	-
