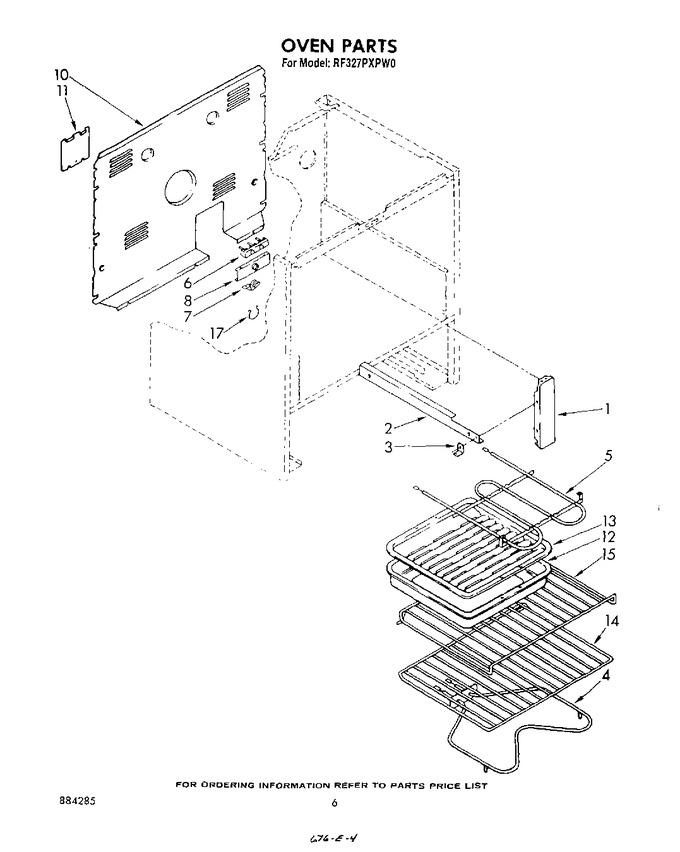

SELECT A DIAGRAM

02 - Cooktop


03 - Oven


04 - Door And Drawer


05 - Oven (continued) , Literature And Optional


06 - Control Panel


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307981		Bracket, Mounting (2)		Appelez-nous	-
2	307983		Rail L.h. (includes Illus. 3)		Appelez-nous	-
2	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
2	307982		Rail R.h. (includes Illus. 3)		Appelez-nous	-
3	307979		Glide, Front (2)		Appelez-nous	-
4	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
4	WP312309		Unit, Bake (208v)   (Replaces: 312309)				$ 157.54
4	WP308180		Unit, Bake (240v)   (Replaces: 308180)				$ 96.92
4	WP308180		Unit, Bake (240v)   (Replaces: 313827)				$ 96.92
4	WP308180		Unit, Bake (240v)   (Replaces: 661170)				$ 96.92
5	WP660579		Unit, Broil   (Replaces: 660579)				$ 140.80
5	WP660579		Unit, Broil (alt.)   (Replaces: 311713)				$ 140.80
5	WP660579		Unit, Broil (alt.)   (Replaces: 311714)				$ 140.80
5	246127		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
6	WP112432		Nut (6)   (Replaces: 112432)				$ 7.16
6	98884		Screw, 10-16 X 1 (2)		Appelez-nous	-
6	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
7	313660		Clip		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
7	308498		Ground Strap		Appelez-nous	-
8	307970		Bracket, Service		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
10	307971		Cover, Rear		Appelez-nous	-
10	WP681414		Screw, 10-16 X 1/2 (7)   (Replaces: 343641)			Immediately	$ 7.07
11	307972		Cover, Service		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
12	4396923		Pan, Broiler   (Replaces: 310976)			Immediately	$ 52.04
13	4396923		Rack, Broiler   (Replaces: 258171)			Immediately	$ 52.04
14	308173		Rack, Oven (straight)		Appelez-nous	-
15	308172		Rack, Oven (offset)		Appelez-nous	-
17	261748		Touch-up Continuous Clean (1 Oz.)		Appelez-nous	-
17	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
17	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
17	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
17	261890		Harvest Gold		Appelez-nous	-
17	285365		Toast		Appelez-nous	-
17	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
17	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
17	350942		Primer (white)   (Replaces: 206922)				$ 80.69
17	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
17	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
17	978883		Almond (uncut)		Appelez-nous	-
17	261889		New Avocado (uncut)		Appelez-nous	-
17	261887		Coffee (uncut)		Appelez-nous	-
17	261891		Harvest Gold (uncut)		Appelez-nous	-
17	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
17	285368		Platinum (uncut)		Appelez-nous	-
17	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
17	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
17	261582		Grease		Appelez-nous	-
17	3147861		Dressing, Element		Appelez-nous	-
17	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
17	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
17	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
17	242985		Rotissorie Kit (rck 81)		Appelez-nous	-
17	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
17	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
17	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
17	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
17	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
17	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
17	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
17	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
17	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
17	242831		Wire (14 Ga. 200 C Red)				$ 342.23
17	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
17	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
17	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
17	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
17	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
17	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
17	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
17	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
17	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
17	261888		New Avocado		Appelez-nous	-
17	261886		Coffee		Appelez-nous	-
	LIT313473		Installation Instructions		Appelez-nous	-
	312308		Unit, Broil (208v)		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT884285		List, Parts		Appelez-nous	-
	LIT3147423		Guide, Use & Care		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36

    View Diagram in Separate Window       Print Part List
