SELECT A DIAGRAM

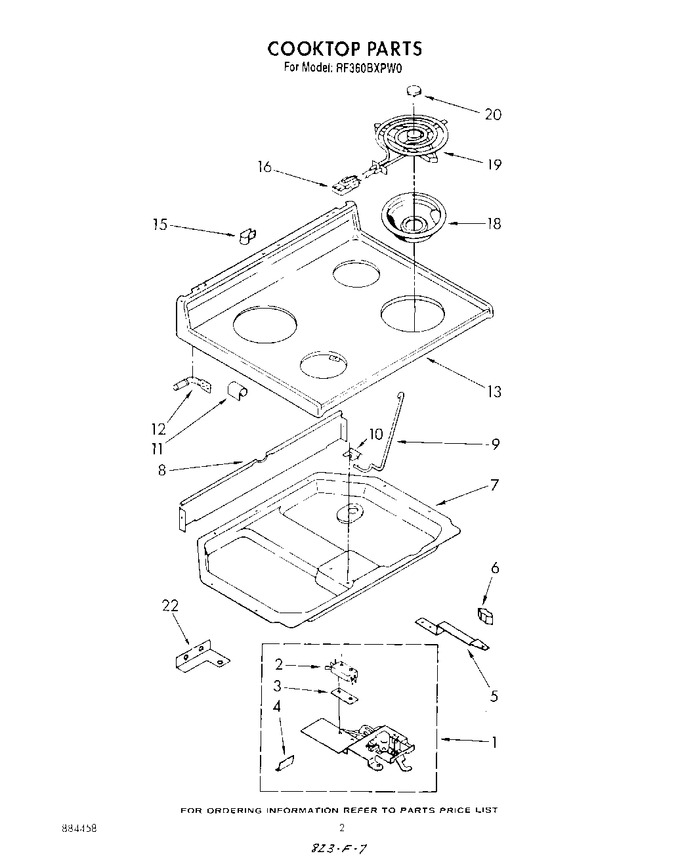

02 - Cook Top


03 - Control Panel


04 - Door And Drawer


05 - Oven , Lit/optional


06 - Section


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328585		Latch Assembly (pyro)		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
2	98106		Screw (2)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
4	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
5	311056		Screw (2)		Appelez-nous	-
5	WP488627		Screw, 8-18 X 1/2   (Replaces: 313349)				$ 6.81
5	307976		Handle, Latch		Appelez-nous	-
6	307977		Knob, Latch		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
7	307929		Burner Box		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
8	307973		Shield, Wiring		Appelez-nous	-
9	307968		Rod, Cooktop		Appelez-nous	-
10	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
10	307967		Retainer, Cooktop		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
12	307966		Pin, Cooktop (2)		Appelez-nous	-
13	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
13	307871		Cooktop (almond)		Appelez-nous	-
13	307866		Cooktop (white)		Appelez-nous	-
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
16	330031		Receptacle Clip (4)   (Replaces: 3147829)			Immediately	$ 14.48
16	WP313808		Screw, 6-32 X 1/4 (4)   (Replaces: 313808)				$ 6.84
18	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 3148358)			Immediately	$ 18.70
18	WPW10196406		Reflector Pan 6`` (2)   (Replaces: 3148357)			Immediately	$ 12.05
19	WP660532		Unit, Surface (6``)   (Replaces: 660532)			Immediately	$ 36.90
19	WP660533		Unit, Surface (8``) (includes Illus. 20)   (Replaces: 660533)			Immediately	$ 39.47
20	309195		Medallion (4)		Appelez-nous	-
22	312320		Shield, Insulation		Appelez-nous	-
22	307748		Screw, 10a X 1/2		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT313473		Installation Instructions		Appelez-nous	-
	LIT3147417		Guide, Use & Care		Appelez-nous	-
	LIT884458		List, Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
