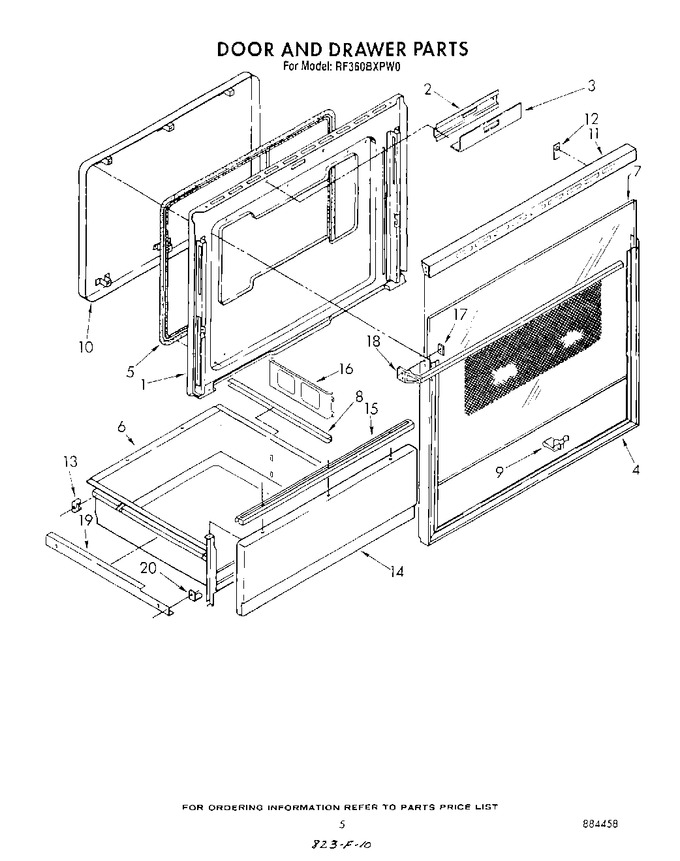

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 311056 | Screw (2) |
|
- | |||||
| 1 | 329694 | Liner, Door |
|
- | |||||
| 1 | WP488729 | Screw (6) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 1 | WP90296 | Clip (2) (Replaces: 90296) |
|
$ 7.07 | |||||
| 2 | 308033 | Channel, Latch |
|
- | |||||
| 3 | 310056 | Shield, Insulation |
|
- | |||||
| 3 | 311054 | Screw (2) |
|
- | |||||
| 4 | 310427 | Frame, Door |
|
- | |||||
| 5 | 311904 | Seal, Oven Door |
|
- | |||||
| 6 | 327887 | Drawer, Utility |
|
- | |||||
| 7 | 00573829 | Glass, Outer (Replaces: 310655) |
|
Immediately | $ 27.48 | ||||
| 8 | 309329 | Protector, Drawer Slide (2) |
|
- | |||||
| 9 | 310706 | Glass, Clip (10) |
|
- | |||||
| 10 | 328546 | Panel, Inner |
|
- | |||||
| 11 | 310784 | Top, Pano Door |
|
- | |||||
| 11 | 307748 | Screw (2) |
|
- | |||||
| 12 | 310705 | Hold Down, Glass (2) |
|
- | |||||
| 13 | 307980 | Glide, Rear (2) |
|
- | |||||
| 13 | 307748 | Screw (2) |
|
- | |||||
| 14 | WP488787 | Panel, Drawer (screw (3)) (Replaces: 312566) |
|
$ 9.52 | |||||
| 14 | 307939 | Panel, Drawer (almond) |
|
- | |||||
| 14 | 307935 | Panel Drawer (white) |
|
- | |||||
| 15 | WP488627 | Screw (2) (Replaces: 313349) |
|
$ 6.81 | |||||
| 15 | 313337 | Handle, Drawer |
|
- | |||||
| 16 | 357645 | Rack, Literature |
|
- | |||||
| 17 | 314235 | Clip |
|
- | |||||
| 18 | 312722 | Handle, Door |
|
$ 118.10 | |||||
| 18 | WP355515 | Screw (4) (Replaces: 355515) |
|
$ 6.90 | |||||
| 19 | 307982 | Rail, Drawer (r.h.) |
|
- | |||||
| 19 | 307983 | Rail, Drawer (l.h.) |
|
- | |||||
| 19 | 307748 | Rail, Drawer (screw (2)) |
|
- | |||||
| 20 | 307979 | Glide, Front (2) |
|
- |
