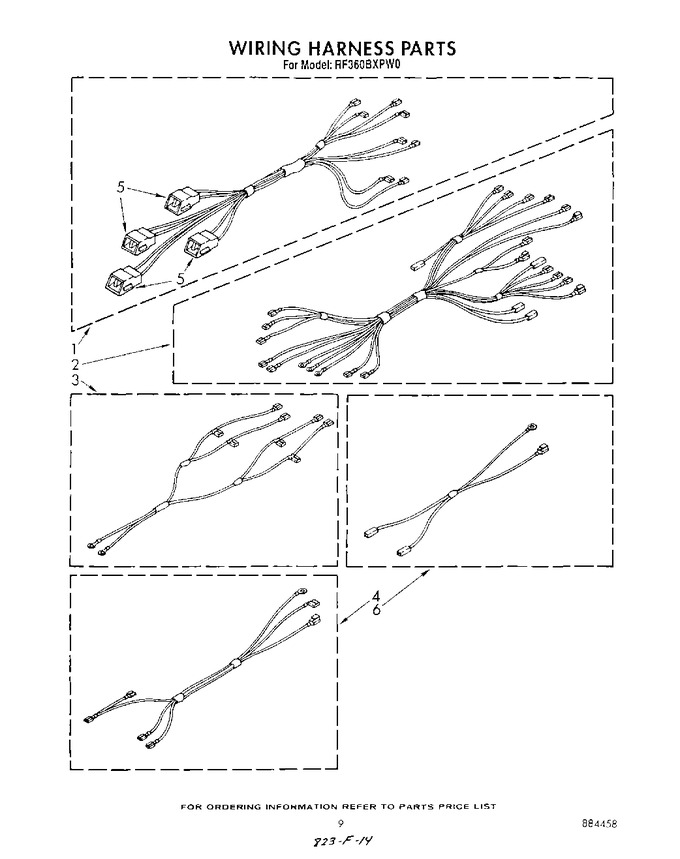

07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313148 | Harness, Wire (suface Units) |
|
- | |||||
| 2 | 3148649 | Harness, Wire (oven) |
|
- | |||||
| 3 | 313147 | Harness, Wire (supply) |
|
- | |||||
| 4 | 313550 | Harness, Wire (lock Switch) |
|
- | |||||
| 5 | 330031 | Receptacle |
|
Immediately | $ 14.48 | ||||
| 6 | 313154 | Harness, Wire (oven Light) |
|
- |
