Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 316786 Top Grate (4 Required) Appelez-nous -
2 321337 Screw 10-32x7/16`` Appelez-nous -
3 301672 Retainer-main Top (2 Required) Appelez-nous -
4 239764 Keps Nut 8-32 Appelez-nous -
5 310218 Washer Appelez-nous -
6 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16

7 239113 Screw 10-32x3/8`` Appelez-nous -
8 320408 Burner Box Bottom Appelez-nous -
9 322170 Knob-oven Thermostat Appelez-nous -
10 320920 Knob-gas Valve (4 Required) Appelez-nous -
11 24667 Catch-main Top Strike (2 Req) Appelez-nous -
12 324531 White Appelez-nous -
12 324535 Almond Appelez-nous -
13 299784 Strike-main Top (2 Required) Appelez-nous -
14 99279 Washer Appelez-nous -
15 316814 Almond Appelez-nous -
15 316813 White Appelez-nous -
16 285945 Clamp Appelez-nous -
17 315379 Support-main Top Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

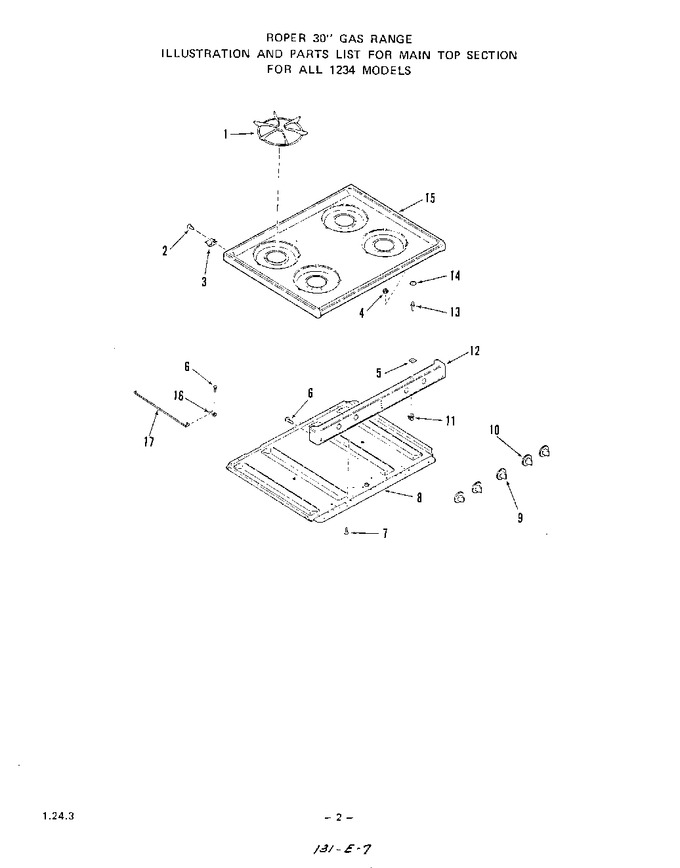

Diagram for 1234W0A
