SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Burner

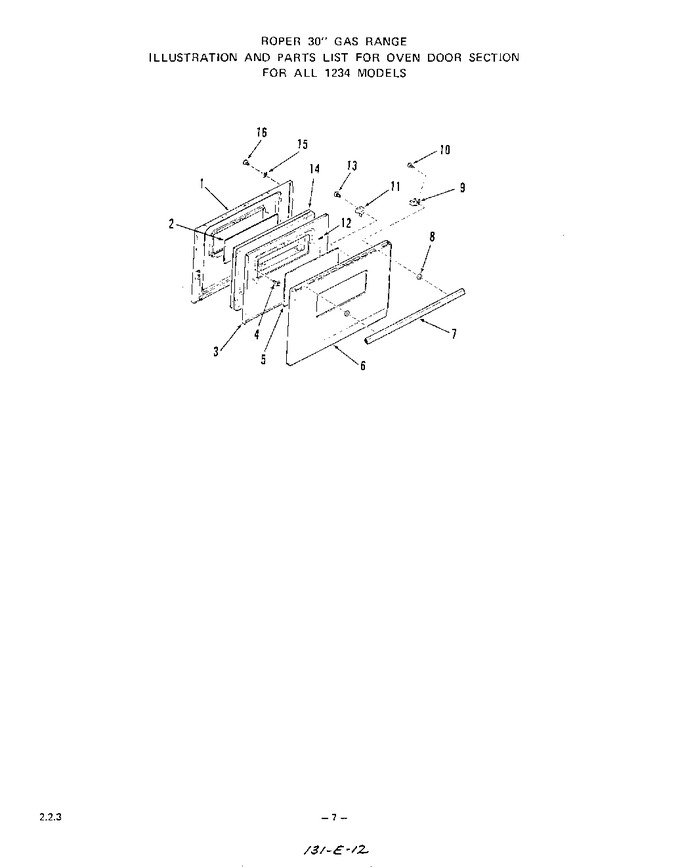

04 - Body


05 - Oven Door


06 - Rotisserie Kit 1006504 , Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	296205		Lining-oven Door		Appelez-nous	-
2	299921		Inner Glass-oven Door		Appelez-nous	-
3	325026		Retainer-insulation		Appelez-nous	-
4	104520		Screw 10-32 X 17/32``		Appelez-nous	-
5	302014		Outer Glass-oven Door				$ 11.27
6	310374		Front Panel-oven Door (almond)		Appelez-nous	-
6	310373		Front Panel-oven Door (white)		Appelez-nous	-
7	292240		Handle-oven Door		Appelez-nous	-
8	302343		Spacer-door Handle		Appelez-nous	-
9	296224		Spacer-oven Door		Appelez-nous	-
10	316365		Screw 10-32x7/16``		Appelez-nous	-
11	299592		Retainer-oven Door Glass		Appelez-nous	-
12	282259		Cushion-door Glass		Appelez-nous	-
13	239113		Screw 10-32x3/8``		Appelez-nous	-
14	296142		Insulation (2 Req)		Appelez-nous	-
15	21067		Washer		Appelez-nous	-
16	320765		Backguard		Appelez-nous	-
16	322226		Switches-gas Valve & Thermostat		Appelez-nous	-
16	318427		Module		Appelez-nous	-
16	102376		Screw 10-32 X 1/2``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
