SELECT A DIAGRAM

01 - Backguard


02 - Main Top

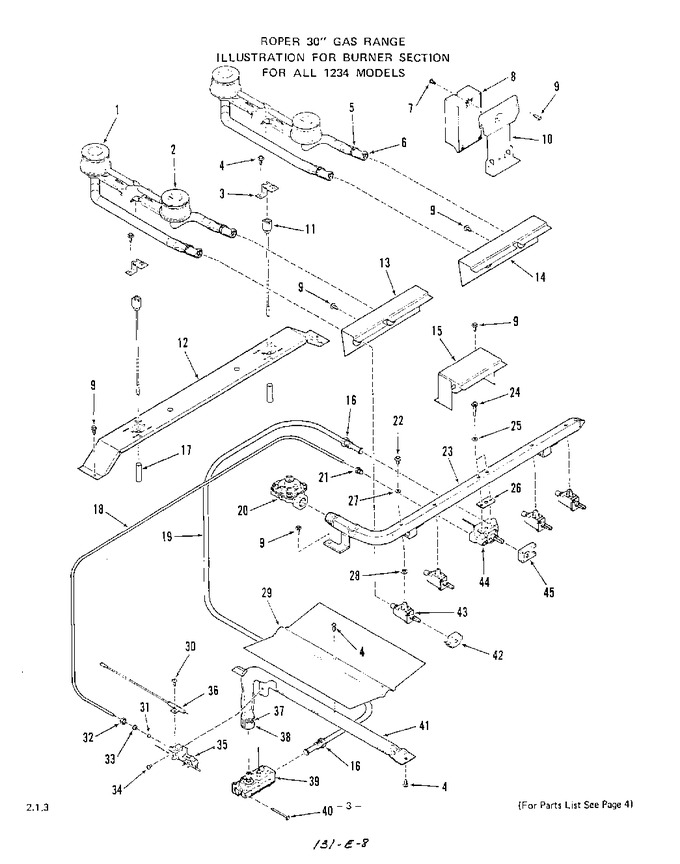

03 - Burner


04 - Body


05 - Oven Door


06 - Rotisserie Kit 1006504 , Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310197		Rear Top Burner-lt. Or Rt. (inc`s. 5 & 6)		Appelez-nous	-
2	310196		Front Top Burner-lt. Or Rt. (inc`s. 5 & 6)		Appelez-nous	-
3	312453		Bracket-spark Igniter (lt. Or Rt.)		Appelez-nous	-
4	316365		Screw 10-32x7/16``		Appelez-nous	-
5	301911		Adjustment Screw-air Shutter		Appelez-nous	-
6	301910		Air Shutter		Appelez-nous	-
7	299766		Screw 6-32 X 1/2``		Appelez-nous	-
8	318430		Module-spark Igniter		Appelez-nous	-
9	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
10	318439		Support-spark Igniter		Appelez-nous	-
11	312455		Left		Appelez-nous	-
11	312598		Right		Appelez-nous	-
12	313375		Support-top Burner		Appelez-nous	-
13	321172		Valve Cover-left		Appelez-nous	-
14	321170		Valve Cover-right		Appelez-nous	-
15	318460		Wire Cover-oven Thermostat		Appelez-nous	-
16	113384		Inverted Nut 3/8``		Appelez-nous	-
17	314132		Sleeve-igniter Wire (lt. Or Rt.)		Appelez-nous	-
18	322446		Tubing 3/16``		Appelez-nous	-
19	295037		Tubing 3/8``		Appelez-nous	-
20	324529		Pressure Regulator		Appelez-nous	-
21	79673		Loxit Nut 3/16``		Appelez-nous	-
22	311455		Mounting Screw (inc`s. 27)		Appelez-nous	-
23	318481		Manifold Pipe		Appelez-nous	-
24	318478		Mounting Screw (2 Req. For 44)		Appelez-nous	-
25	318658		Gasket (for 24)		Appelez-nous	-
26	318657		Silicone Rubber Gasket		Appelez-nous	-
27	304241		Gasket (for 22)		Appelez-nous	-
28	313563		Silicone Rubber Gasket		Appelez-nous	-
29	302729		Baffle - Oven Burner		Appelez-nous	-
30	300000		Screw 6-32 X 5/16``		Appelez-nous	-
31	318485		Orifice Cup Only (for 35)		Appelez-nous	-
32	65712		Compression Nut 3/16``		Appelez-nous	-
33	65711		Compression Ball Sleeve 3/16``				$ 6.30
34	288248		Screw 10-24x1/4``		Appelez-nous	-
35	318486		Pilot Only (inc`s. 31)		Appelez-nous	-
36	318431		Electrode - Oven Spark Igniter		Appelez-nous	-
37	312989		Adjustment Screw -air Shutter		Appelez-nous	-
38	312988		Air Shutter		Appelez-nous	-
39	318482		Control Valve (inc`s. 31 & 35)		Appelez-nous	-
40	112365		Screw 10-32x2``		Appelez-nous	-
41	319255		Oven Burner (inc`s. 29,37 & 39)		Appelez-nous	-
42	312457		Switch-valve (1 Ea. Req. For 43)		Appelez-nous	-
43	324987		Gas Valve (4 Required-inc`s Keys 22,27 & 28)		Appelez-nous	-
44	318477		Oven Thermostat (inc`s. Key 26)		Appelez-nous	-
45	318432		Switch-oven Thermostat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
