SELECT A DIAGRAM

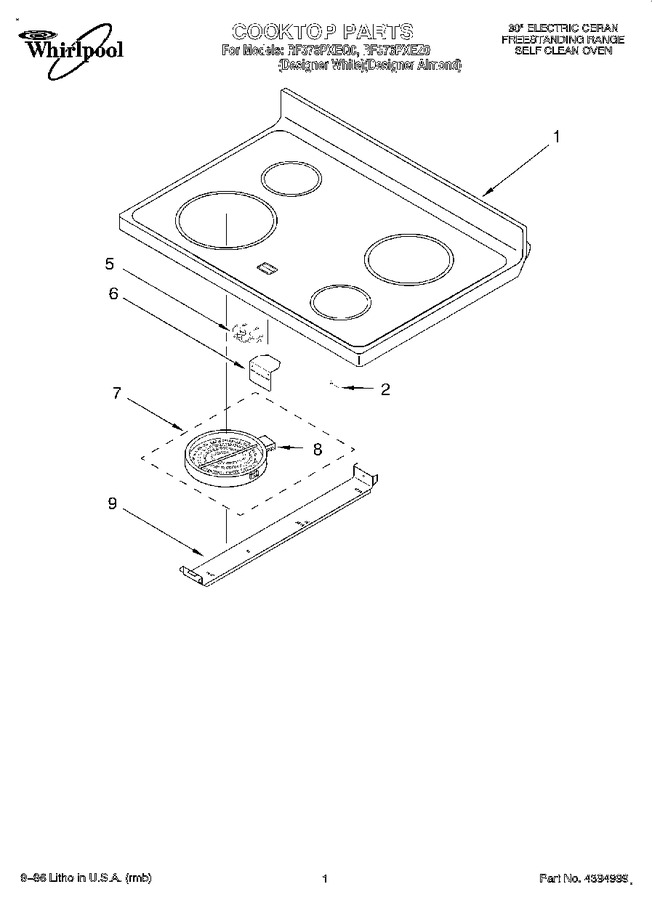

01 - Cooktop


02 - Control Panel


03 - Chassis


04 - Drawer And Broiler


05 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3196417		Cooktop (white)		Appelez-nous	-
1	3196418		Cooktop (almond)		Appelez-nous	-
2	3149191		Spring, Locator				$ 9.45
2	WP3196170		Screw   (Replaces: 3196170)				$ 6.47
5	3169397		Light, Indicator (hot Surface)		Appelez-nous	-
6	3195810		Bracket, Ind Light		Appelez-nous	-
6	WP3196175		Screw (2)   (Replaces: 3196165)			Immediately	$ 6.47
7	3189897		Element, Surface (includes No. 8) (2400 W - Lf)		Appelez-nous	-
7	3189895		Element, Surface (includes No. 8) (1700 W - Rr)		Appelez-nous	-
7	W10823704		Element, Surface (includes No. 8) (1200 W - Rf)   (Replaces: 3196428)			Immediately	$ 309.01
8	3190251		Limiter, Temp. (2400 W - Lf)		Appelez-nous	-
8	3190250		Limiter, Temp. (1700 W - Rr)		Appelez-nous	-
8	3190248		Limiter, Temp. (1200 W - Rf)		Appelez-nous	-
9	3196455		Bracket, Element		Appelez-nous	-
9	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
