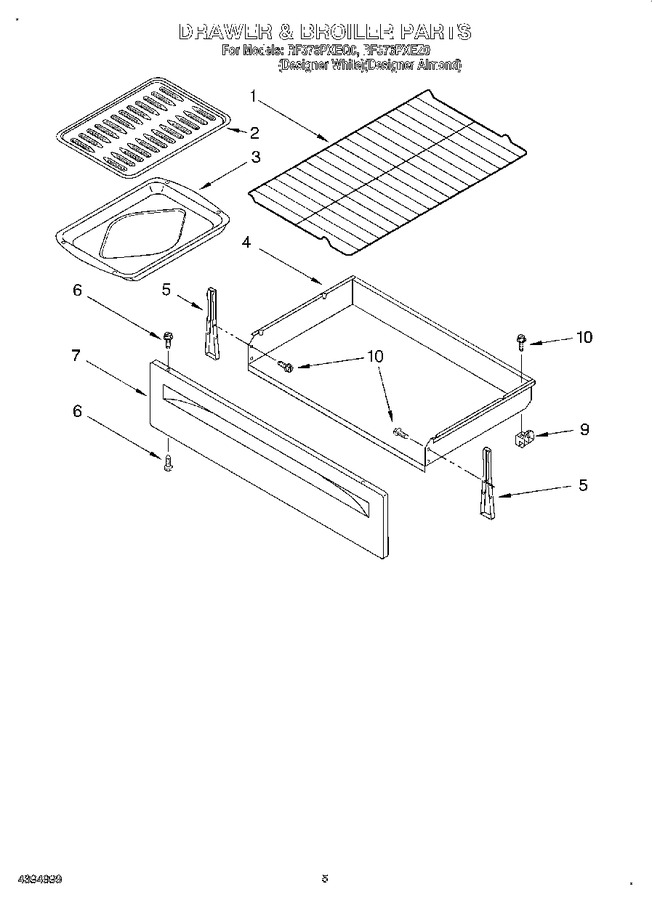

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop
02 - Control Panel
03 - Chassis
04 - Drawer And Broiler
05 - Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: 3195710) |
|
Immediately | $ 42.16 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 82.63 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 279.38 | |||||
| 4 | 3186096 | Drawer, Storage |
|
- | |||||
| 5 | WP3400832 | Screw (4) (Replaces: 3196168) |
|
Immediately | $ 6.98 | ||||
| 5 | W10838990 | Bracket, Drawer (2) (Replaces: 3186098) |
|
Immediately | $ 76.24 | ||||
| 6 | 3196559 | Screw, Panel (2) (almond) |
|
- | |||||
| 6 | 3196558 | Screw, Panel (2) (white) |
|
- | |||||
| 7 | W11219377 | Panel, Drawer Front (white) (Replaces: 3186101) |
|
$ 182.21 | |||||
| 7 | 3195094 | Panel, Drawer Front (almond) |
|
- | |||||
| 9 | WP8053334 | Glide, Drawer (2) (Replaces: 3195062) |
|
Immediately | $ 7.06 | ||||
| 10 | WP3400832 | Screw (8) (Replaces: 3196168) |
|
Immediately | $ 6.98 |
