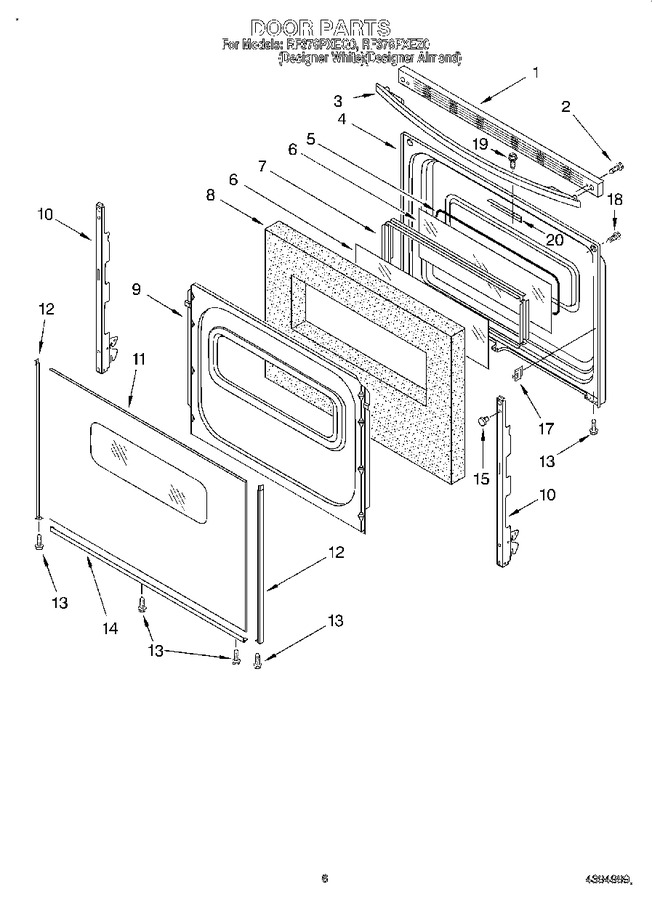

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3195603 | Trim, Door Top (white) |
|
- | |||||
| 1 | 3195604 | Trim, Door Top (almond) |
|
- | |||||
| 2 | WP3196164 | Screw (2) (Replaces: 3196164) |
|
Immediately | $ 7.82 | ||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: 3195218) |
|
$ 317.72 | |||||
| 3 | 3195921 | Handle, Door (almond) |
|
- | |||||
| 3 | WP179051 | Handle, Door (screw (2)) (Replaces: 3196161) |
|
Immediately | $ 7.16 | ||||
| 4 | 3186296 | Liner, Door |
|
- | |||||
| 5 | 3195985 | Seal, Window |
|
- | |||||
| 6 | WP9758164 | Glass, Inner (2) (Replaces: 3186282) |
|
$ 137.08 | |||||
| 7 | 3186290 | Frame, Glass |
|
- | |||||
| 8 | 3186256 | Insulation, Door |
|
- | |||||
| 9 | 9761499 | Retainer, Insul. (Replaces: 3186299) |
|
$ 278.86 | |||||
| 10 | WP8053807 | Hinge, Door (2) (Replaces: 3186068) |
|
$ 81.73 | |||||
| 11 | 3195616 | Glass, Outer Door (almond) |
|
- | |||||
| 11 | WP9762476 | Glass, Outer Door (white) (Replaces: 3195613) |
|
$ 285.14 | |||||
| 12 | 8184859 | Trim, Side (white Right Hand) (Replaces: 3195971) |
|
$ 146.49 | |||||
| 12 | 8184859 | Trim, Side (white Left Hand) (Replaces: 3195974) |
|
$ 146.49 | |||||
| 12 | 8184860 | Trim, Side (almond Left Hand) (Replaces: 3195975) |
|
$ 129.91 | |||||
| 12 | 8184860 | Trim, Side (almond Right Hand) (Replaces: 3195972) |
|
$ 129.91 | |||||
| 13 | W10491985 | Screw (9) (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 14 | 8184859 | Trim, Lower (white) (Replaces: 3195422) |
|
$ 146.49 | |||||
| 14 | 8184860 | Trim, Lower (almond) (Replaces: 3195423) |
|
$ 129.91 | |||||
| 15 | 238614 | Bumper, Door (2) (Replaces: 3195809) |
|
$ 72.68 | |||||
| 17 | 3196025 | Clip, Glass (6) |
|
$ 20.10 | |||||
| 18 | WP179051 | Screw (Replaces: 3196161) |
|
Immediately | $ 7.16 | ||||
| 19 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 6.98 | ||||
| 20 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 20 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 20 | 261888 | New Avocado |
|
- | |||||
| 20 | 261886 | Coffee |
|
- | |||||
| 20 | 261890 | Harvest Gold |
|
- | |||||
| 20 | 285365 | Toast |
|
- | |||||
| 20 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 20 | 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | ||||
| 20 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 20 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 20 | 978883 | Almond (uncut) |
|
- | |||||
| 20 | 261891 | Harvest Gold (uncut) |
|
- | |||||
| 20 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 20 | 285368 | Platinum (uncut) |
|
- | |||||
| 20 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 20 | 3184478 | Cleaner, Glass |
|
- | |||||
| 20 | 8273888A | Anti-tip Kit (Replaces: 3176830) |
|
$ 27.96 | |||||
| 20 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 20 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 20 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 20 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 20 | 3195914 | Bracket, Latch |
|
- | |||||
| 20 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 6.98 | ||||
| 20 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 20 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 20 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 20 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 20 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 20 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 20 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 20 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 20 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 20 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 20 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 20 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 20 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 20 | 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | ||||
| 20 | 261582 | Grease |
|
- | |||||
| 20 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 20 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 20 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 20 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 20 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 20 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 20 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | |||||
| WP3196154 | Screw, Ground (Replaces: 3196154) |
|
$ 7.04 | ||||||
| LIT3195945 | Installation Instr (templet) |
|
- | ||||||
| 3196132 | Harness, Wire (oven Light) |
|
- | ||||||
| LIT3195944 | Instructions, Installation |
|
- | ||||||
| 3196696 | Clip, Wire Harness |
|
- | ||||||
| 3196108 | Harness, Wire (door Switch) |
|
- | ||||||
| 3184020 | Wire, Ground (Replaces: 311227) |
|
$ 74.50 | ||||||
| LIT3196277 | Guide, Use & Care |
|
- | ||||||
| LIT3196134 | Tech Sheet |
|
- | ||||||
| 3196387 | Harness, Cooktop |
|
- | ||||||
| 3196139 | Harness, Wire (oven) |
|
- |
