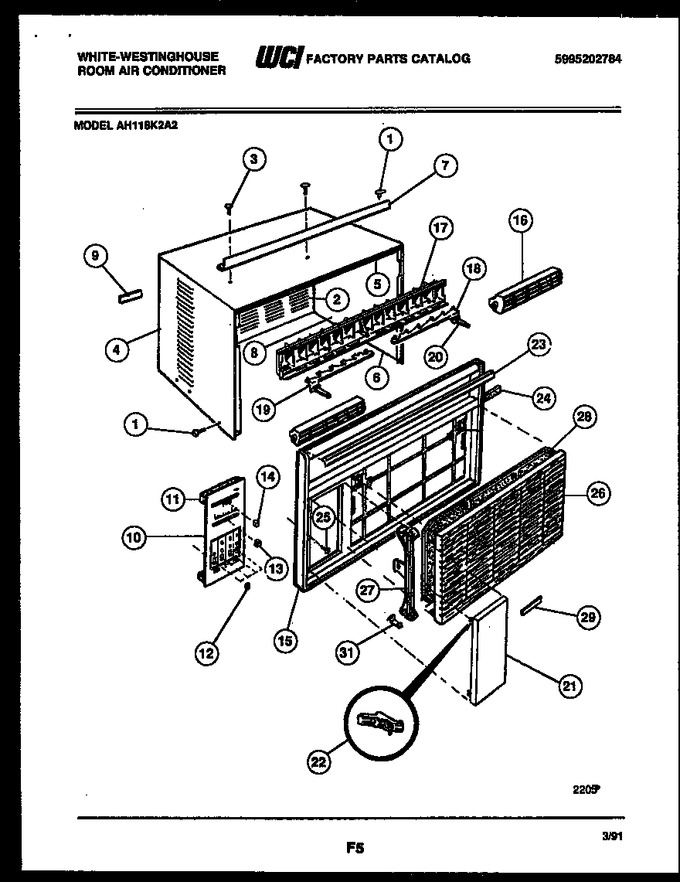

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3211028 | Screw |
|
- | |||||
| 2 | 5308006428 | Panel-rear |
|
- | |||||
| 3 | 08016237 | Screw |
|
- | |||||
| 4 | 3017288 | Wrapper |
|
- | |||||
| 5 | 08007530 | Seal Wrapper Front |
|
- | |||||
| 6 | 08009358 | Seal Base Lh |
|
- | |||||
| 7 | 3001873 | Rail, Top |
|
- | |||||
| 8 | 5303206876 | Insulation Sides |
|
- | |||||
| 9 | 5303271448 | Nameplate Rear Panel |
|
- | |||||
| 10 | 3205735 | Dial Plate |
|
- | |||||
| 11 | 5308016088 | Spacer |
|
- | |||||
| 12 | 5308016116 | Knob |
|
- | |||||
| 13 | 5303002189 | Knob-slide |
|
- | |||||
| 14 | 5308017143 | Knob |
|
- | |||||
| 15 | 5303271449 | Frame |
|
- | |||||
| 16 | 5308017244 | Frame-horiz Louver |
|
- | |||||
| 17 | 5303002458 | Louver & Link |
|
- | |||||
| 18 | 5303002164 | Link Rh |
|
- | |||||
| 19 | 5303002165 | Link-lh |
|
- | |||||
| 20 | 5303001844 | Clip |
|
- | |||||
| 21 | 5303201645 | Door |
|
- | |||||
| 22 | 5303017980 | Hinge |
|
- | |||||
| 23 | 5300344902 | Trim |
|
- | |||||
| 24 | 5300301157 | Seal-mullion |
|
- | |||||
| 25 | 5308008175 | Screw-front |
|
- | |||||
| 26 | 5300454703 | Panel-front |
|
- | |||||
| 27 | 5300346201 | Track Filter |
|
- | |||||
| 28 | 5300462201 | Filter |
|
- | |||||
| 29 | 5300138101 | Nameplate |
|
- | |||||
| 31 | 5308010914 | Clip-front |
|
- | |||||
| 14A | 5300462706 | Cabinet Front Complete (non-illustrated) |
|
- | |||||
| 29A | 5308017124 | Bracket Frame (non-illustrated) |
|
- | |||||
| 6A | 08009359 | Seal Base Rh |
|
- |
