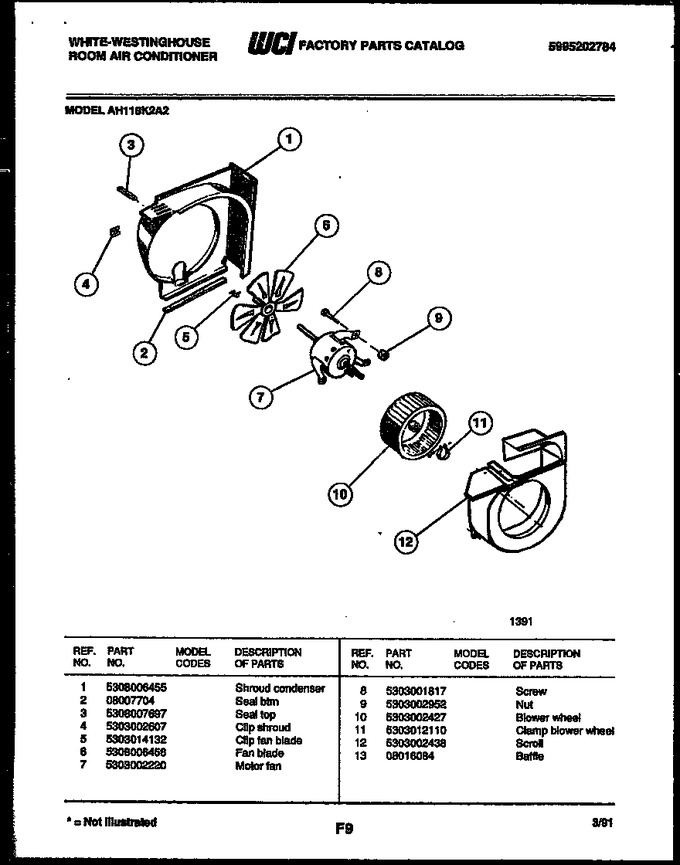

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308006455 | Shroud Condenser |
|
- | |||||
| 2 | 08007704 | Seal Btm |
|
- | |||||
| 3 | 5308007697 | Seal Top |
|
- | |||||
| 4 | 5303002607 | Clip Shroud |
|
- | |||||
| 5 | 5303014132 | Clip Fan Blade |
|
- | |||||
| 6 | 5308006458 | Fan Blade |
|
- | |||||
| 7 | 5303002220 | Motor Fan |
|
- | |||||
| 8 | 5303001817 | Screw |
|
- | |||||
| 9 | 5303002952 | Nut |
|
- | |||||
| 10 | 5303002427 | Blower Wheel |
|
- | |||||
| 11 | 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | |||||
| 12 | 5303002438 | Scroll |
|
- | |||||
| 13 | 08016084 | Baffle |
|
- |
