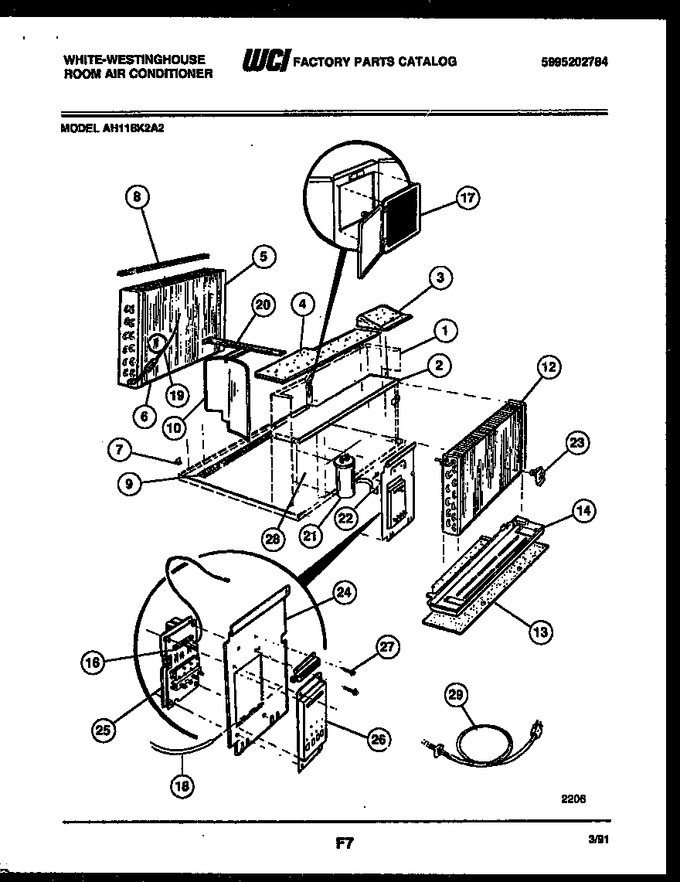

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08007688 | Bulkhead |
|
- | |||||
| 2 | 08007547 | Partition |
|
- | |||||
| 3 | 08016084 | Baffle Acoustical |
|
- | |||||
| 4 | 08012971 | Insulation Pad |
|
- | |||||
| 5 | 5303002242 | Condenser |
|
- | |||||
| 6 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 7 | 5303209136 | Clip-condenser |
|
- | |||||
| 8 | 5308007697 | Seal Cond Top |
|
- | |||||
| 9 | 08007704 | Seal Cond Btm |
|
- | |||||
| 10 | 08007703 | Baffle Condensate |
|
- | |||||
| 11 | 5303207639 | Base |
|
- | |||||
| 12 | 5303206718 | Evaporator |
|
- | |||||
| 13 | 5303018414 | Tray Pad |
|
- | |||||
| 14 | 5303002332 | Tray Evap |
|
- | |||||
| 15 | 5303202999 | Retainer - Actuator |
|
- | |||||
| 16 | 5303002127 | Arm |
|
- | |||||
| 17 | 5303012455 | Vent Door |
|
- | |||||
| 18 | 5303002132 | Cable Door |
|
- | |||||
| 19 | 5308017253 | Capillary Tube-cut To 35`` |
|
- | |||||
| 20 | 08007696 | Support Condenser |
|
- | |||||
| 21 | 5303012042 | Capacitor 20-5/370 |
|
- | |||||
| 22 | 5303001770 | Strap |
|
- | |||||
| 23 | 08016082 | Clip Thermistor |
|
- | |||||
| 24 | 08017245 | Panel - Control |
|
- | |||||
| 25 | 5308017317 | Control Electronic |
|
- | |||||
| 26 | 5308017139 | Cover Control |
|
- | |||||
| 27 | 08016220 | Screw |
|
- | |||||
| 28 | 08007534 | Divider |
|
- | |||||
| 29 | 08017363 | Power Cord |
|
- | |||||
| 28A | 08016086 | Housing Elec Control (non-illustrated) |
|
- |
